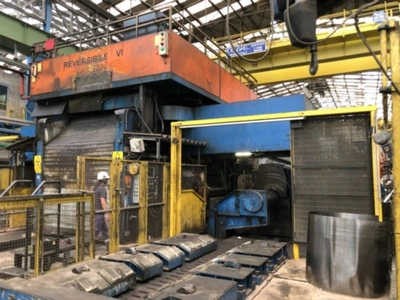

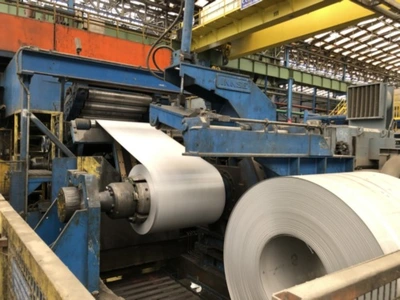

SMS DEMAG 6HI REVERSING COLD ROLLING MILL
Overview
Specs
TYPE:6-HI
BUILT:2002
MODERNIZATION IN 2010
ROLLED MATERIAL:CARBON STEEL SAE1006, S235-S550, C45-C75, IF
STRIP WIDTH MAX.: 1150 MM
THICKNESS:IN 3.5 MM OUT 0.30 - 2.5 MM
SPEED MAX.: 1000 M/MIN
COIL I.D./O.D.508 MM / 2000 MM
ROLL SEPARATION FORCE 800 TON
MAX. TENSION 9000 KG
BACKUP ROLL DIAMETER: 1050 MM - 1150 MM
INTERMEDIATE ROLL DIAMETER:430- 470 MM
WORK ROLL DIAMETER: 250 MM - 280 MM
MILL MOTORS (2) 2250KW, DC
WINDER MOTORS (EA) 2700 KW, DC
COOLANT EMULSION FILTRATION BY MAGNETIC SYSTEM

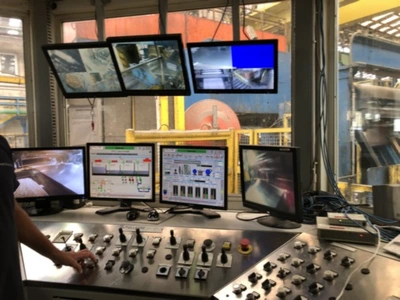

MOTOR CONTROL SYSTEM & PLC: SIEMENS, 2010
THICKNESS CONTROL: EMS AUTOMATIC GAP CONTROL (AGC)
ELECTRICAL VOLTAGE: 380 V, 3 PHASE, 50 HZ

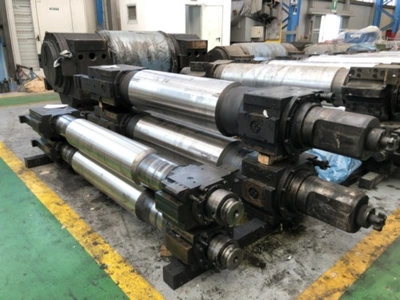

NO. OF WORK ROLLS: LARGE INVENTORY OF ROLLS, NEW AND USED
NO. INTERMEDIATE ROLL: 10
NO. OF BACK-UP ROLLS: 4
(ROLL COUNT TO BE CONFIRMED)
MANUAL AND ELECTRIC & MECHANICAL DRAWING AVAILABLE
LARGE ASSORTMENT OF SPARE PARTS
