60" x .250" x 50,000# Braner Loopco Dual Head Loop Slitting Line

Coil Capacity Uncoiler to Recoiler: 50,000#

Thickness Range: .030" - .250"

Entry Coil Width: 6" - 60"

Minimum Slit Width: .625"

Coil ID: 20"

Coil OD: 72"

Arbor Diameter: 9.5"

Complete Line With:

Mandrel Uncoiler

Serial No. 9003701

Hydraulic Expansion

Hydraulic Sliding Base

Powered Hold Down Roll

4 Leaf Mandrel

Aeromet Drum

Feed-Up Drive

Wichita Water Cooled Brake with Cooler

Peeler Table

Pinch Rolls

Fairchild Weston X=Ray Gauge (Sliding Base)

Rotary Crop Shear

Pinch Rolls

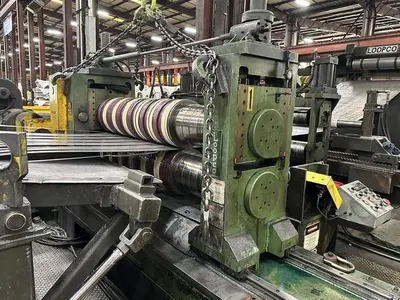

2 Slitting Heads

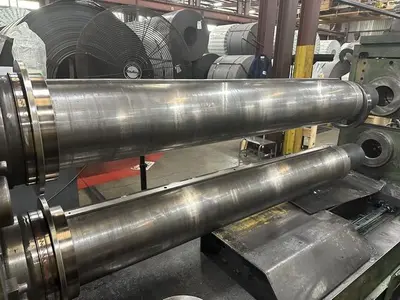

9.5" Diameter Arbors

Motorized Arbor Adjustment

Hydraulic Sliding Outboard for Tooling Change

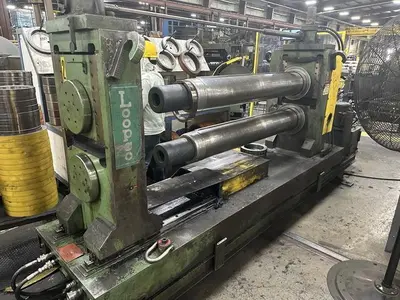

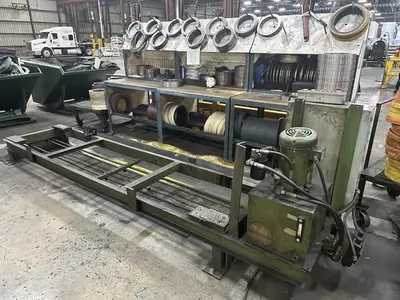

2 Slitter Head Set Up Stations with Hydraulic Power

40HP AC Feed Up Drive

150HP DC Motor Drive

Looping Pit Cross Over Table

2 Coiltech Scrap Winders

Combination Rotary / Drag Board Tension Stand

Entry Tooling Shaft

Drag Pad with Hydraulic Pressure

2 Roll Rotary Tension Stand

Dual Water Cooled Brakes with Coolers

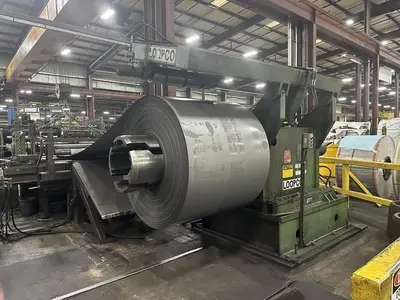

Recoiler

Overarm Seperator

Hydraulic Push-Of

Hydraulic Drum

2 Speed Gear Box

250HP DC Motor

Operator Push Button Station

Digital Footage Counter

Coil Weight Production

Run Time

Line Speed

(Above Shows Per/Shift and Per Coil)

Hydraulics, Electrics and Controls
