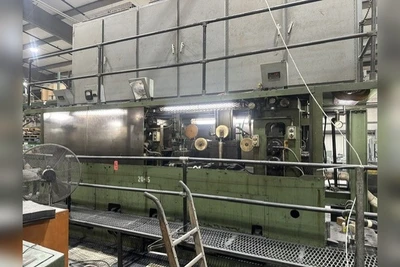

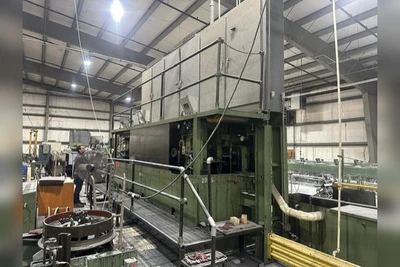

3 STAND TANDEM 2HI WIRE FORMING & REDUCTION MILL

SPECIFICATIONS:

NUMBER OF STANDS - 3

ROLLS PER STAND - 2

STAND NUMBER 1 - 8" X 2" ROLLS

STAND NUMBER 2 - 7" X 2" ROLLS

STAND NUMBER 3 - 7" X 2" ROLLS

ENTRY WIRE DIAMETER - .375" DIAMETER

FIRST PASS - 1/8" THICK X " WIDE

FINISH THICKNESS (10 PASSES) - .4" X 0.010"

SPEED - 100 FPM

CARBIDE ROLLS - EACH STAND

POWERED SCREW DOWN - EACH STAND

MOTOR - (1) 75 HP DC DRIVE MOTOR, (2) 50 HP MOTORS

INTERMEDIATE EDGING GUIDES - 2 W/ 1 HP MOTOR

TURKSHEAD SHAPING STATION - YES

CIRCULATION SYTEM - YES

THICKNESS & WIDTH GAUIGES - YES

MILL COOLANT - ROLLING MILL OIL

TENSIONS STAND WITH DANCER ROLL - YES

ELECTRICS & CONTROL PANEL

INCLUDES:

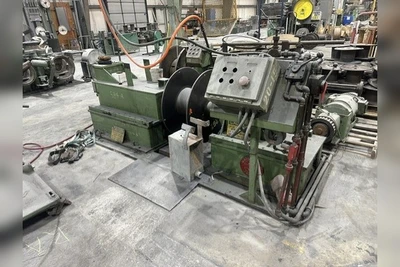

WATBERBURY-FARREL SPOOL PAYOFF W/ INGROUND V-TYPE COIL CAR (1980)

ENTRY DANCER ROLL

WATERBURY FARREL TRAVERSING TAKE-UP / RECOILER REEL (1980)
