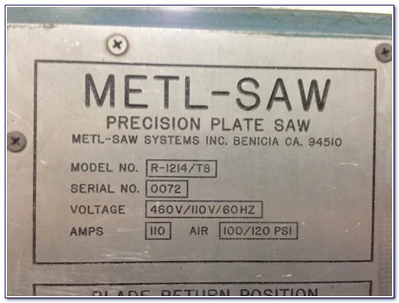

METLSAW R1214/T8 ALUMINUM PLATE SAW

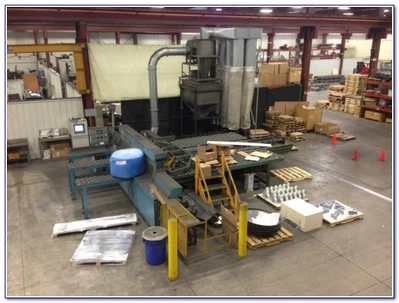

Main Saw:

27'4" L X 7' 8 " W X 6' H

Powered Feed Table:

18'9" L X 4'2" W X 3' H

#1 Roller Support Table:

10' L X 4' W X 3'6" H

#2 Roller Support Table:

9' L X 3'9" W X 3'6" H

Torit Dust Collector:

4'6" L X 3'6" W X 14' H

Screw Chip Removal Assembly:

6' L X 3'7" W X 6' H

Chip Hopper:

4'6" L X 4'6" W X 10'5" H

GRADES:

All grades of Aluminum

THICKNESS: Min 1/8" thru Max 8" thick

THROAT: 192" (16')

BACKGAUGE: 144"

KERF LOSS: 0.250"

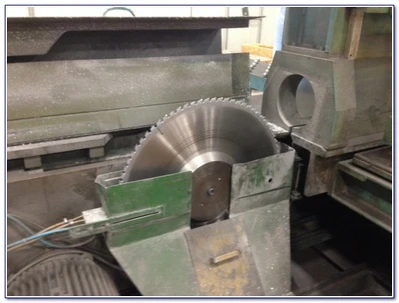

5.22-1/2" BLADES, SQUARING DEVICE, MATERIAL CLAMPS

2-10' ROLLER BALL TABLES X 45" X 48"

1-18' ROLLER BALL TABLE X 48" X 48'

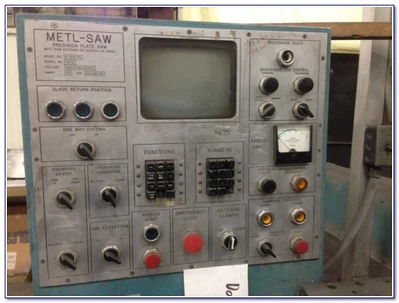

AUTOMATIC OPERATION

DUST COLLECTOR SYSTEM

TOLERANCES: Width & Length

+/- .005" for precision cut up to 4" thick

+/- .015" for precision cut >4" thick

+/- .015" for standard cut up to 4" thick

+/- .030" for standard cut >4" thick

Perpendicularity

within .015" up to 4" think

within .030" >4" thick

SURFACE FINISH 125 RMS standard cut 63 R

50 HP, 480 VOLT, 110 AMPS

1750 RPM, 120 PSI
