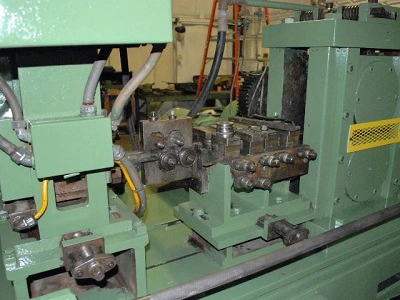

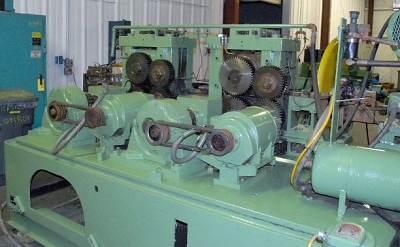

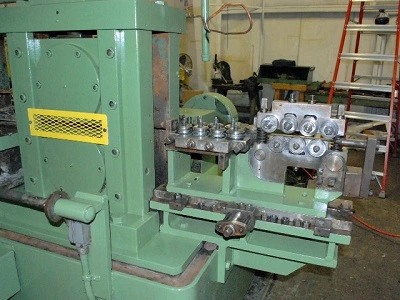

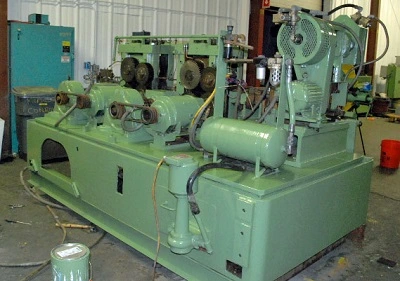

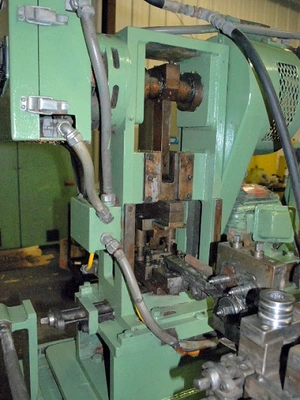

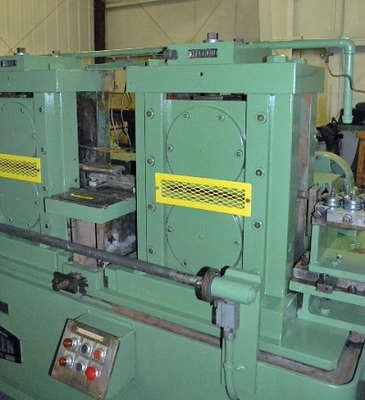

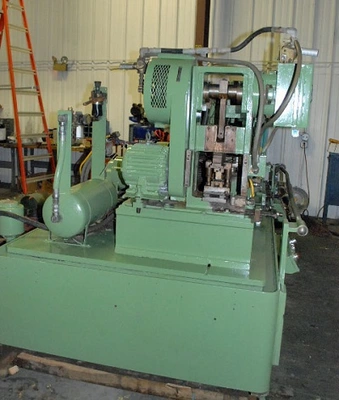

USED TISHKEN MANUFACTURING STR-FLS-2

GENERAL SPECIFICATIONS:

MANUFACTURER: TISHKEN MANUFACTURING

MODEL: STR-FLS-2

TYPE MILL: 2 STAND TANDEM WIRE FLATTENING,

STRAIGHTENING AND CUT-OFF LINE

CAPACITY: #8 OR #9 GAUGE SPRING WIRE

(.162" - .148") MAX. RANGE

ROLL SIZE: 11" DIAMETER x 4-1/2" FACE WIDTH

OVERALL DIMENSIONS

(MILL): 11' L-R x 6' F-B x 6' H

(CONTROLS): 4'6" L-R x 2'4" F-B x 7'6" H

(TABLE): 10'8" L-R x 1'6" F-B x 4' H

EQUIPPED WITH:

BELT DRIVEN INDIVIDUALLY DRIVEN STANDS

ENTRY 2 PLANE STRAIGHTENER, 4 OVER 3 ROLLS EACH PLANE

EDGE GUIDES

FIRST SET PINCH ROLLS WITH 5 ROLL STRAIGHTENER

SECOND SET EXIT PINCH ROLLS WITH 4 ROLL VERTICAL STRAIGHTENER

TISHKEN #PT-CO-1A AIR CLUTCH AUTOMATIC CUTOFF, S/N 18402-12-82

GUSHER COOLANT PUMP 1/4 HP, 220/440 VOLTS

MANUAL ROLL ADJUSTMENT

10 FT. RUNOUT TABLE

INDIVIDUAL VARIABLE SPEED, ALL CONTROLS RELIANCE

MOTOR GENERATOR SET:

- INPUT VOLTAGE 208/220/440 FULL LOAD AMPS 53.8 - 52/26

- OUTPUT VOLTAGE 240 DC, FULL LOAD AMPS 55

- (2) DC MOTORS: 5 HP, 240 V DC, 1750/2600 RPM WITH CONTROLS

**PRICE QUOTED AS IS WHERE IS SUBJECT TO PRIOR SALE**

**ALL SPECIFICATIONS ARE SUBJECT TO VERIFICATION BY PURCHASER**
