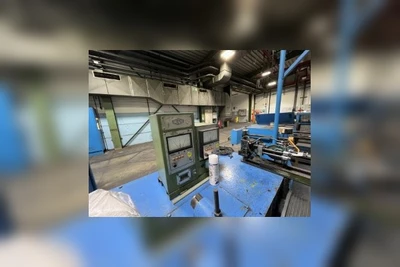

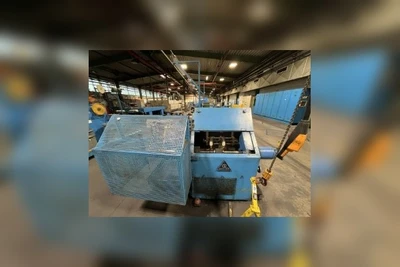

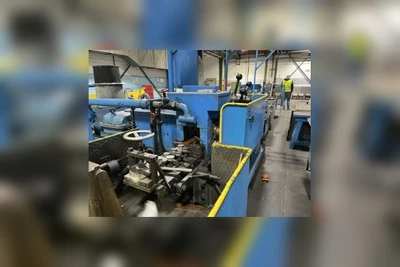

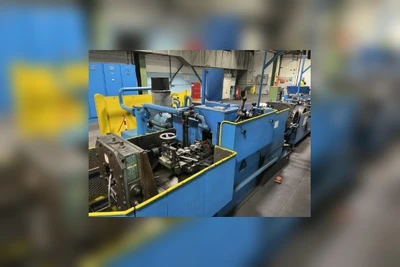

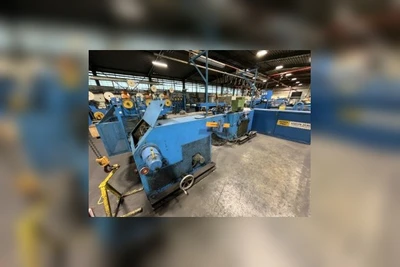

Bongard Wire Flattening Mill
Overview
Specs
Machine Type: Bongard Wire Flattening Mill
Application: Precision Flat Wire Production
Flat Wire Working Range (W x H): 0.5 x 0.1 mm to 8.0 x 1.5 mm+
Maximum Line Speed: 120 m/min+
Entry Section:
Entry Uncoiler
Maximum Coil Weight: Not Available
Entry Wire Guide

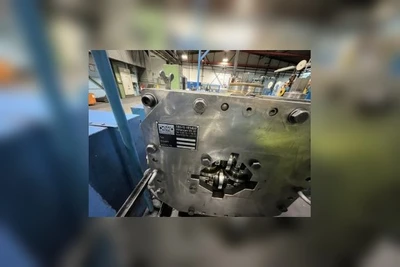

Turkshead: Marshal Richards 4th Turkshead, hand adjustment
Entry Straightener: 7 Roll Entry Straightener and Guide
Rolling Mill Section:
Rolling Mill Type: 2-Hi Rolling Mill
Roll Dimensions: 120 mm Diameter x 30 mm Roll Face
Top Roll Adjustment: Hand Adjustment
Main Drive Motor: 0.15 / 15 / 15 kW
Motor Speed: 75 / 250 / 1500 RPM
Motor Voltage: 42 / 400 / 400 V
Exit Section:
Exit Guide
Exit Turkshead: PEKA Turkshead
Tension Stand
Pull Through Unit: BONGARD Dual Capstan Pull Through
Traverse Spooler:
Traverse Spooler
Maximum Spool Width: 200 mm
Spooler Motor Type: DC Motor
Spooler Motor Power: 0.1 / 10 kW
Motor Speed: 15 / 1500 RPM
Motor Voltage: 19 / 400 V
Additional Information:
Coolant circulation and filtration system included
Coolant Pump Motor: 4 kW
Manuals Available
Drawings Available
