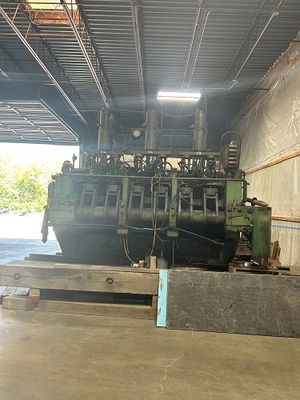

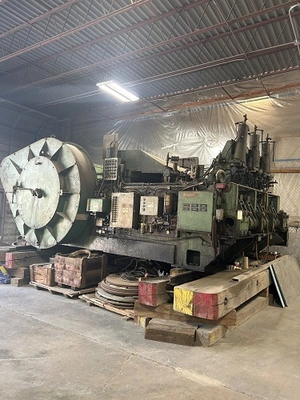

300 TON WATERBURY FARREL MODEL #300 HTP HORIZONTAL PRESS

N E W 1 9 7 2

Rated Capacity .................................... 300 tons

Number of Stations ................................ 12

(six initial

six final)

Stroke ............................................ 10"

EQUIPPED WITH:

30 HP Delco Motor Large Air Clutch

***** This press takes a small section of tubing approximately

2' long x 4-1/2" diameter and folds it flat into a round

ring, folded over double thickness with a hole in the

center.
