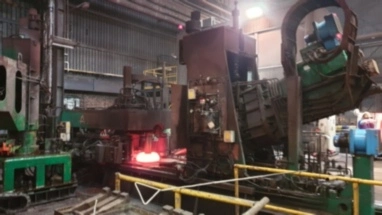

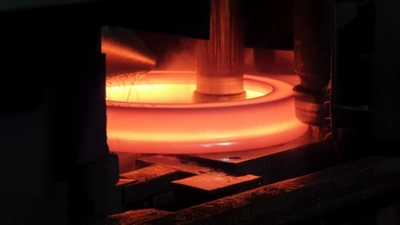

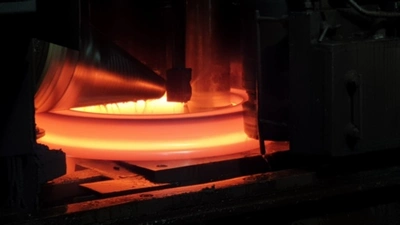

SMS THYSSEN WAGNER MODEL RAW 125/100-3000/600 RING ROLLING MACHINE

Mfg. Date, September 1995, in operation 3 shift

Excellent operational condition and repair with consistent annual maintenance.

Modernization: main control system; measuring system (for all actuators and

mechanisms)

Last in operation August 2019.

SPECIFICATIONS

Exit and Entry Manipulators

Diameter of Rolled Rings:

Min/Max .............280/3000 mm

Height of rolled rings:

Min/Max............30-600 mm

Radius rolling force Max.....1, 25MN (125 Tons)

Axial rolling force Max....... 1.00 MN (100 Tons)

Rolling speed ..........0.4 - 1.6 m/s

Diameter main cylinder..... 610 mm

Length of the roll axis (cone).... 60

Angle of the cone .......35-degree

Diameter of roller mills.... 100 - 245 mm

Main drive motors, Radial .... (2) Motors 200 KW

Main drive motors, Axial..... (2) Motors, 200 KW

Total weight of the rolling mill, approximately 150 Tons

ALSO INCLUDED

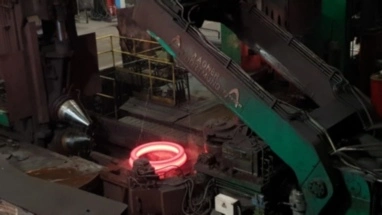

SMS Loading Manipulator (betwen press and mill)

Max. Ring Weight........................1500 kg

Radius of the Loading Manipulator.......3000 mmm

Max. Rotation of Arm................... 165 dgr

Unloading Manipulator

Max. Raising the Arm ..................550 mm

Max. Rotation of the arm ..............175 dgr

Max. transportable Weight..............1500 kg.

Radius of the Unloading Manipulator....3000 mm

Controls are implemented from the mill's main control system.

ELECTRICAL CONTROLS ADDENDUM

Electrical Supply: 400V, 50 Hz

1. Main Motors:

Main Radial Motors: DMG 225S, 215kW, 581 A - (2) pieces

Main Axial Motors: DMI 225S, 215kW, 581 A - (2) pieces

2. The motors are powered by four (4) thyristor converters from ABB-DC-800-

A02-1000-04D (originally ABB PAD3001 drives - 4 items)

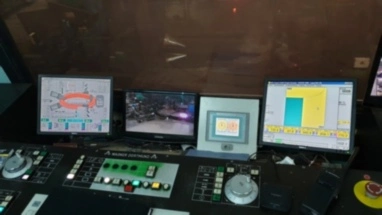

3. The control system has been modernized with a Siemens S7-300 PLC controller

with an Ethernet and Profibus CPU unit (originally it was a SIMATIC S5 135U

controller) - Software source codes available

4. The control is super ordinated by an industrial computer type MASMSE05 in

which there is a computer - Modulo4 from Sorcus.

5. Road measurements in hydraulic cylinders have been modernized with Balluff

type BTFL2 / BTL7-P511-M ... ..- B-S32 movement sensors adapted to BTM-H1-340

modules with bit outputs coupled with the Sorcus Modulo4 controller

SPARE PARTS

- Axle rollers 2 pcs (new)

- Friction Strips

- Guides of the shaft cylinder cage

- Measuring Guides (measuring roll)

- Main Drive Coupling

- Tests standards for coupling cones

- Slatted and Retractable Slats

- Road Wheels and Thrust Wheels

- Bearings for the Cassette and Cage of the Shaft Cylinder

- Main Motor

OPERATOR'S MANUAL AND DRAWINGS AVAILABLE UPON REQUEST

Click here to see a video of the machine:

https://www.youtube.com/watch?v=TxXGTCEAEm0
