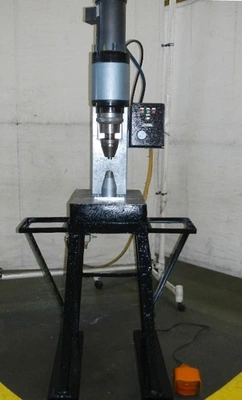

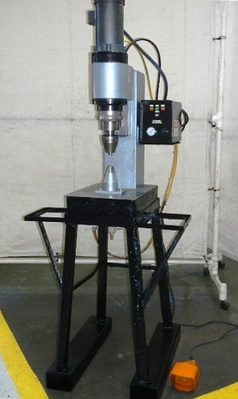

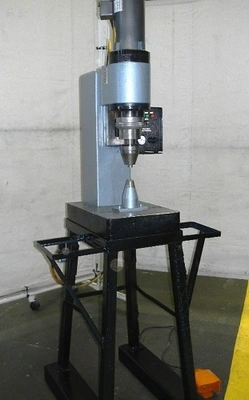

.55" TAUMEL ORBITAL HEAD FORMING MACHINE

.55" TAUMEL ORBITAL HEAD FORMING MACHINE*

MODEL T-501 S/N MAL-135 NEW 2002

STROKE ................... 0-1.50" BY .001" INCREMENTS

FORCE .................... 5,300 LBS @ 100% PSI

CAPACITY ................. .55"

THROAT ................... 6.6"

BED SIZE ................. 14-3/4" DEEP X 12-3/4" WIDE

CYCLE TIME PROGRAMMABLE .. 0-5.0 SECONDS

FLOOR TO TABLE DISTANCE .. 42"

AIR SUPPLY ............... 10-100 PSI

MOTOR .................... 3/4 HP

WEIGHT 600 LBS.

DIMENSIONS 24" X 31" X 80" H

MACHINE IS EQUIPPED WITH:

- REMOTE FOOT PEDAL

- INFINITELY ADJUSTABLE CYCLE TIME

- INFINITELY ADJUSTABLE HEADFORMING PRESSURE

- BUILT-IN PRESSURE INDICATOR

- INTEGRAL MICROMETER STROKE ADJUSTMENT

- HEIGHT (COARSE) ADJUSTMENT

- FULLY AUTOMATIC OR SEMI-AUTOMATIC CYCLING

- SIMPLE TOOLING SET-UP

- LONG TOOL LIFE
