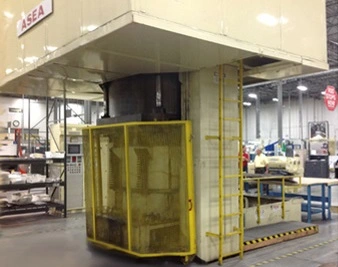

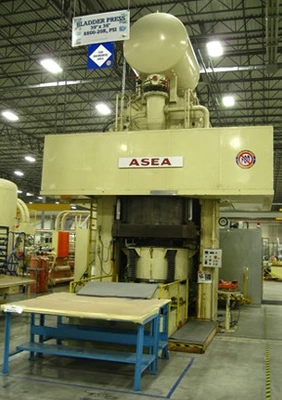

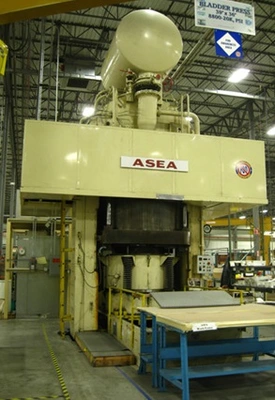

AVURE (ASEA) QUINTUS FLUID CELL FORMING PRESS

SPECIFICATIONS:

TWO FLUID FORM UNITS AVAIABLE WITH THIS PRESS

1st Fluid Form Unit =1120 mm

BLANK DIAMETER, Maximum 42.9" (1100 mm)

DRAW DEPTH, Maximum 12.3" (315 mm)

FORMING PRESSURE, Maximum 9,100 psi (63 MPa)

Tonnage 6,610

Nominal diameter...43.7" (1120 mm) Outer diameter, cylinder

57.3" (1469 mm)

Outer diameter, piston fastener. 68.6" (1760 mm) Height (unloaded

39" (1000 mm)

Total weight 18,743 lbs. (8500 kg) Oil volume 108 US gal.

2nd Fluid Form Unit =1120 mm

BLANK DIAMETER, Maximum 26.9" (710 mm)

DRAW DEPTH, Maximum 12.3" (315 mm)

FORMING PRESSURE, Maximum 23,200 psi (160 MPa)

Tonnage 6,930

Nominal diameter 27.7" (710 mm)

Outer diameter, cylinder 43.5" (1115 mm) Outer diameter, piston

fastener 42.9" sq (1100 mm) square

Height (unloaded 39" (1000 mm)

Total weight 10,584 lbs. (4800 kg) Oil volume 39.6 US gal. Type of

Oil Castor oil 1172-1011-106

SPEED of OPERATION SEQUENCE (Hydroforming)

AUTO MODE: Mobile Table in to press (Fast & Slow). Press (Advance, Press

Speed, Inching

Speed, Hold Time, Decompression, Return) Mobile Table to Charging

Stat. (Table Out Fast & Slow).

FAST SPEED: Advance 144 mm/s. Press Speed 2,7 mm/s. Inching Speed 0,14

mm/s. Return 144 mm/s.

MEDIUM SPEED: Advance 44 mm/s. Press Speed 1,05 mm/s. Inching Speed 0,14

mm/s. Return 92 mm/s.

SLOW SPEED: Advance 5,6 mm/s. Press Speed 0,14 mm/s. Return 11,77

mm/s.

INCH MODE: Mobile Table in to press (Fast & Slow). Press (Advance, &

Return) Mobile Table to

Charging Stat (Table Out Fast / Slow). Ejector Cylinder Up /

Down.

FAST SPEED: Advance 144 mm/s. Press Speed 2,7 mm/s. Inching Speed 0,14

mm/s. Return 144 mm/s.

MEDIUM SPEED: Advance 44 mm/s. Press Speed 1,05 mm/s. Inching Speed 0,14

mm/s. Return 92 mm/s.

SLOW SPEED: Advance 5,6 mm/s. Press Speed 0,14 mm/s. Return 11,77

mm/s.

SERVICE MODE: Mobile Table in to press (Slow). Press (Advance, & Return).

Mobile Table to Charging

State (Table Out Slow). Ejector Cylinder Up / Down.

FAST SPEED: Advance 144 mm/s. Press Speed 2,7 mm/s. Inching Speed 0,14

mm/s. Return 144 mm/s.

CONTROLS:

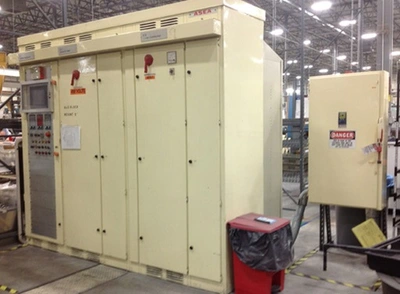

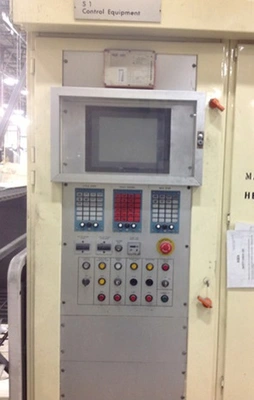

Located on and with-in MAIN ELECTRICAL CONTROL CABINET: CRT. Circuit

Breaker, Relays,

Contactors. Fault Signal System, Indication Signal Indicators,

Annunciator Panels, Cycle

Counter and Timers, Press Command - Function Push Buttons, Pump

Motors Start - Stop

Buttons, Press Operation Selector Switches, Emergency Stop Button.

OPERATOR MOBIL PUSH BUTTON CONTROL STATION with: Dual Hand Cycle Start

Push Buttons,

Start - Stop Buttons and Emergency Stop Button.

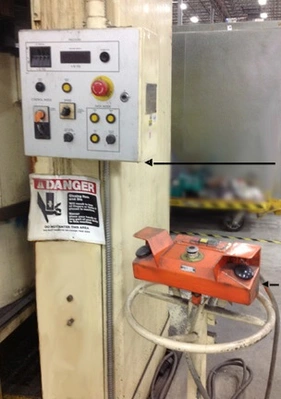

Located on PRESS: CONTROL PANEL FOR PRESSURE: Pressure Gauge. Pressure

Set Dial, Pressure

Display, Calibration Button. Ready Auto Button. Ready Inch

Button.

CONTROL MODE SWITCH: Inch/Auto. SPEED SWITCH: Slow / Medium / Fast.

AUTO MODE Table not out and On switch. INCH MODE BUTTONS for: Table

In/Out, Press Up, Ejection

Up/Down Switch.

EMERGENCY STOP BUTTON. PRESSURE SET DIAL.

EQUIPPED WITH:

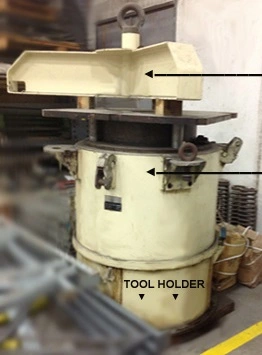

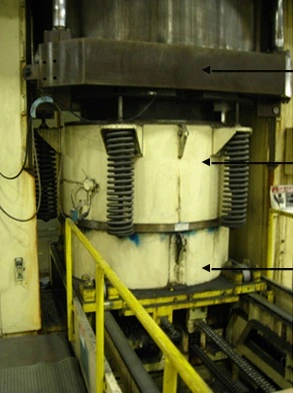

1-Mobil Tool Table.

1-Operator Mobil Control Station. Operation and Part

Manuals, PC Program.

1-Disconnect Switch.

MOTOR DRIVE: Wired 460volts, 3 phase

Main Hydraulic Pump 146 hp (108 kw) 460 volts

Mobil Table Pump 17 hp. (13 kw) 460 volts

Filter & Coolant Pump 4.7 hp (3.5 kw) 460 volts

COMPLETE FACTORY SAFETY GUARDS

Dimensions Height above ground 281.6" (7150.1mm) Below ground 37" (939.8mm)

Total over-all 331" (8407.4mm)Ht. x 205" (5207mm) F-B x 103.3"

(2623.82mm)

Frame (192" (4876.8mm) L-R with Catwalk)

Weight Press 242,500 lbs. Weight Tool Table 22,100 lbs..
