72" WEAN DANIELLI / MECO PUSH PULL PICKLE LINE WITH TEMPER MILL

72" x .060" - .500" carbon steel Thickness x 40 Ton Coils

Speed of line 200 and 400 FPM

Coil Weight: 20,000# - 80,000#

Coil OD: 42" - 80"

Coil ID: 20" with cone inserts, 24" - 36" mandrel

Coil ID exit 24"

Consisting of:

Coil Transfer Car

Double End Expanding Mandrel Uncoiler

2-75 HP DC Drag generators

peeler pinch roll combination

5 roll flattener

200 HP DC

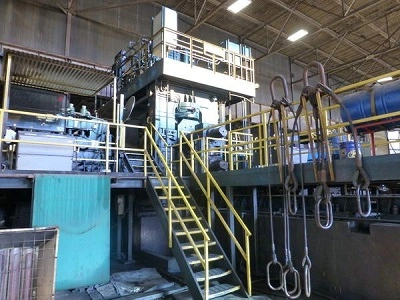

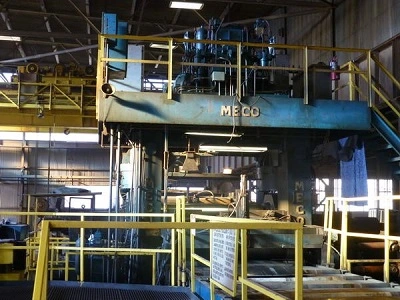

2 HI MECO Temper Mill included with Shape Correction/roll bending

80" x 38" diameter work rolls

Hydraulic screw downs

2 400 HP DC Motors

Recoiler and 400 HP DC drive for temper pass only processing

EXIT SECTION

Edge Trimmer, 125 HP DC

In Line Slitter Head, 150 HP DC

3 roll flex roll processor

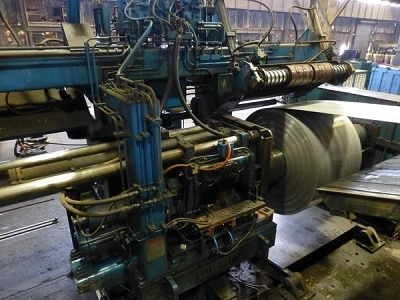

Turret Recoiler with full hydraulic drum

250 HP DC motor

floor standing exit coil car

4 arm exit turnstile

OTHER COMPONENTS

80" Peabody Electrostatic Oiler

2 sets of complete chocks and rolls for the temper mill

approximately 3,000 square feet of dedicated spare parts

(Detailed list to be provided)

General Electric controls and drives on the pickling portion
