60" (1500MM) X " (6.5MM) KCH/STAMCO HYDROCHLORIC PICKLING LINE, NEW 1997

Year: l998

Brazilian Built / Austrian Technology

Capacity: 175,000 Ton/Year

Thickness Range: 2mm - 6.35mm. (.080" - .250")

Hydrochloric Acid

Coil Width Range: 1500mm- 650mm. (60" - 26")

Coil Weight Capacity: 60,000#

Max Line Speed: 100 Meters/Min. (325 FPM)

Complete Line Featuring

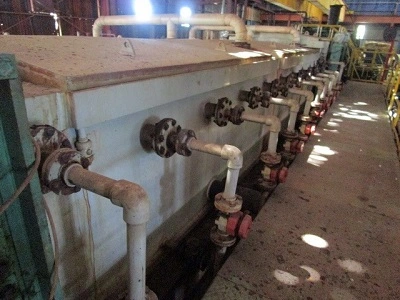

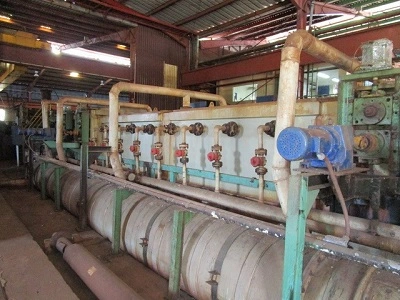

3 Tank Design

Polypropylene Lined Tanks and Covers

Mandrel Uncoiler with Outboard Support

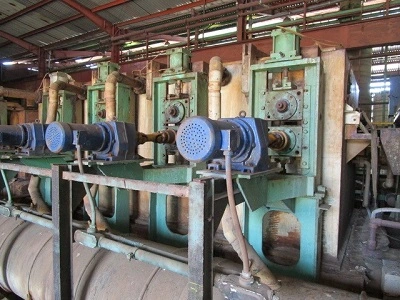

5 Roll Coil Breaker

Crop Shear

Pre-Wash Station

Rinse Section with Air Dryer

Edge Trimmer & Scrap Choppers

Exit Crop. Shear

Recoiler

Volume of Acid in Basins: 16,000 Litres

Acid Temperature in Pools: 80 - 85 degrees C

Percentage of Acid Evaporation in Pools: 8%

Acid Consumption Per Metric Ton (Prepared At 16%). 48kg

Gallons of Water Per Minute in Rinse Stage: 5m3/hr

Rinse Stage Temperature: 58 - 62 degrees C

Drying Temperature: 120 degrees C

Acid Flow Capacity in Sinks #1, #2, And #3: (#1) 50m3/h. (2) 25m3/h. (3).

25m3/h

Drying Air Flow Capacity (C.F.M) Ft3/Min: 900 m3/h

Storage Capacity in New Acid Tank: 20,000 Litres

Storage Capacity in Regenerated Acid Tank: 20,000 litres

Storage Capacity in Prepared Acid Tank: 20,000 litres

Storage Capacity in Used Acid Tank: 40,000 litres

Storage Capacity in Caustic Sodium Tank: 20,000 litres

Storage Capacity in Acid Water Tank: 20,000 litres

Storage Capacity in Raw Water Tank: 20,000 litres

Capacity of The Water Demineralization System:

Storage Capacity of Raw Water Tank: 4,000 litres

Capacity of Demineralization System: 5-6 m3/h

Water Storage Capacity Demineralization of Water: 50 m3

Protective Oil: Quakerol 1035 ES

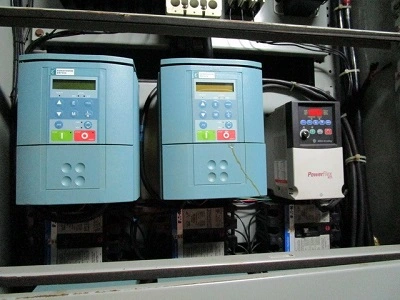

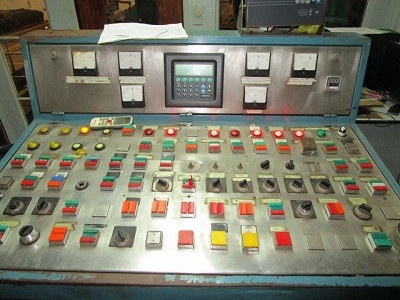

Eurotherm Digital Drives

Parker SSO Digital Drives

Siemens 9200 Controller G

GE Fanuc Digital Readouts

Dust Collectors & Filtration System

Fume Exhaust

Waste Water Treatment Plant

Acid Storage Tanks

1 Diluted Acid Storage Tank

3 Concentrate Acid Storage Tanks

2 Waste Acid Storage Tanks

OPTIONAL ACID REGENERATION PLANT AVAILABLE AS A PACKAGE OR SEPERATE
