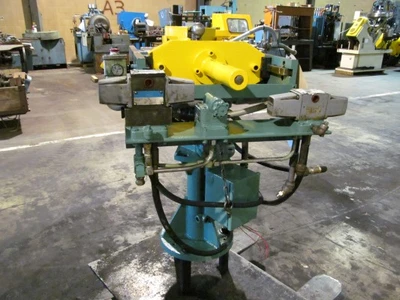

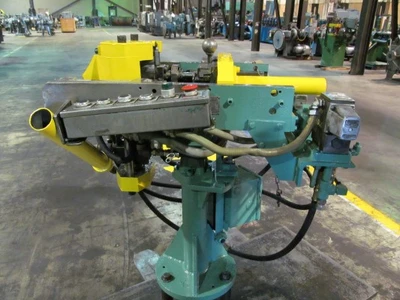

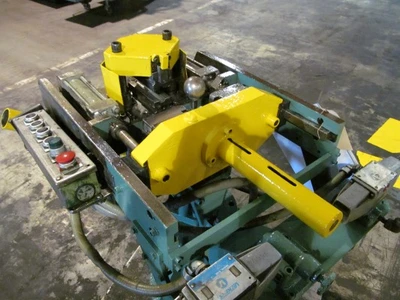

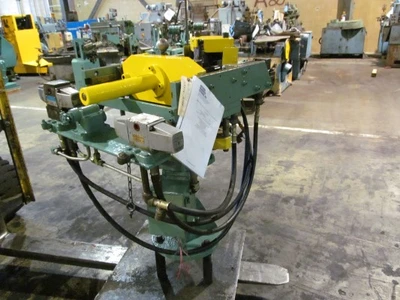

1 1/4" (31.25mm) MITCHELL 2-DIE HYDRAULIC TUBE PUSH POINTER

1 1/4" (31.25mm) MITCHELL 2-DIE HYDRAULIC TUBE PUSH POINTER

MANUFACTURER ............... GEORGE MITCHELL CO. (U.S.A.)

TYPE ....................... HYDRAULIC PUSH POINTER FOR TUBE

TWO DIE MODEL

RATED PUSH FORCE ........... 5,000 Lb @1060 psi Normal Operation

............................ 9,400 Lb @2000 psi Max.

MAXIMUM TUBE O.D. .......... 1 1/4" (31.75mm)

MINIMUM TUBE O.D. .......... 1/4" (6.35mm)

DIE CASE SIZE............... 2 X 3" OD X 2" MAX. THICKNESS

POINTING SPEED

-ADVANCE.................... 353 I.P.M. @ 1000 PSI

-RETRACT.................... 265 I.P.M. @ 1000 PSI

HYDRAULIC CYLINDER

-MANUFACTURER............... MILLER

-MODEL NO................... H-72-B

-BORE....................... 2"

-STROKE..................... 10"

-ROD DIAMETER............... 1"

STROKE ON POINT ............ 5" (127mm)

DIMENSIONS ................. 30" (762mm) x 50" (1270mm) x 48" (1220mm) HIGH

WEIGHT ..................... 2500 LBS. (1133 KG) WITH HYDRAULIC UNIT

EQUIPPED WITH:

FOUR-WAY DIE HOLDER

TWO-POSITION DIE SLIDE

HYDRAULIC CLAMPING

PUSH BUTTON CONTROLS

SWIVEL BASE

VICKERS HYDRAULIC PUMP, FILTER

10 HP 230/460/3/60 (1750 RPM) MOTOR

HYDRAULIC UNIT 36" (914mm) x 40" (1016mm) x 36" (914mm) HIGH

**PRICE QUOTED AS IS WHERE IS SUBJECT TO PRIOR SALE**

**ALL SPECIFICATIONS ARE SUBJECT TO VERIFICATION BY PURCHASER**
