SELMERS INSIDE DIAMETER & WHEELABRATOR/GEMA OUTSIDE DIAMETER PIPE COATING

SELMERS INSIDE DIAMETER & WHEELABRATOR/GEMA OUTSIDE DIAMETER PIPE

COATING FACILITY

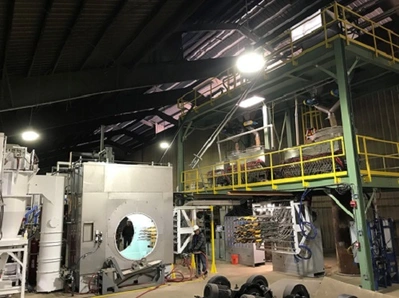

SELMERS INSIDE DIAMETER COATING FACILITY:

PURCHASED NEW IN 2019

THE SELMERS INSIDE DIAMETER COATING FACILITY HAS THE CAPABILITY TO STRIP, COAT

AND CURE 30"-48" DIAMETER X 80' LONG PIPE

THE INSIDE DIAMETER PLANT CONSISTS OF - PIPE ENTRY CONVEYANCE, ID BLASTING

UNIT, ID COATING UNITS, PIPE CONVEYANCE, AND CURING OVEN W/ EXIT TABLE

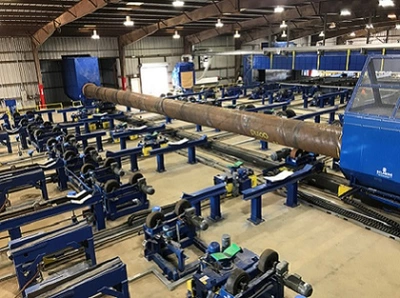

WHEELABRATOR/GEMA OUTSIDE DIAMETER COATING FACILITY CONSISTING OF:

THE WHEELABRATOR/GEMA OUTSIDE DIAMETER COATING FACILITY HAS THE CAPABILITY TO

STRIP, COAT AND CURE 10"-48" DIAMETER X 80" LONG PIPE

THE PLANT CONSISTS OF - PIPE CONVEYANCE, OUTSIDE DIAMETER PREHEAT OVEN TO PREP

COATING PRIOR TO SHOT BLAST, (2) WHEELABRATOR OUTSIDE DIAMER SHOT BLAST UNITS

W/ PIPE CONVEYANCE FOR END CAP/PLUG ASSEMBLY , (4) PREHEAT OVENS, (2) GEMA

PAINT SYSTEM SPRAY BOOTHS WITH 56 SPRAY GUNS PER BOOTH, WATER QUENCH, AIR

RUNOUT, INSPECTION AREA, COATING REPAR AREA, PIPE CONVEYANCE AND OFFLINE CUT

AND BEVEL, PAINT POWDER MIXING ROOM WITH POWDER DELIVERY SYSTEM

OUTSIDE DIAMETER COATING CAPABILITY

FUSION BONDED EPOXY (FBE) - 10" - 48" OD, 10 -40 THICKNESS (MILS), 25' - 80'

LENGTH

ABRASION RESISTENT OVERLAY (ARO) - 10" - 48" OD, 20 -60 THICKNESS (MILS), 25'

- 80' LENGTH

INTERNAL FLOW - 16" - 42" OD, 1.5 - 4 THICKNESSS (MILS), 25' - 80' LENGTH

CONCRETE WEIGHT COATING (CWC) - 12" - 42" OD, 1" - 6" THICKNESS (MILS), 35' -

45' LENGTH
