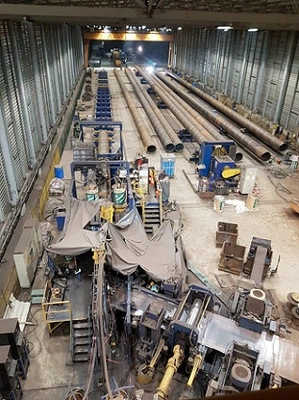

2235MM X 20MM API OZEMEK SPIRAL PIPE MILL

2235MM X 20MM API OZEMEK SPIRAL PIPE MILL YEAR 2004 (MOBIL SPIRAL MILL WITH

OPTIONAL 30,690 FT/2 MOBIL BUILDING

STANDARDS:

-OIL & GAS PIPES: API 5L, ISO 3183, EN 10208-1/2

-WATER PIPES: EN 10217-1, EN 10224, AWWA C200

-PILING PIPES: ASTM A252, EN 10219-1/2

OUTSIDE DIAMETER RANGE: 323.9MM - 2235.2MM

WALL THICKNESS: 4MM - 20MM

PIPE LENGTH: 6M - 16M

MAX COIL WIDTH: 1500MM

OUTSIDE DOUBLE TANDEM SUBMERGED ARC WELDING EQUIPMENT:

-LINCOLN DC 1500 POWER SOURCE (1500 A), NA-5 S CONTROL UNIT- 1 PIECE

-LINCOLN AC 1200 POWER SOURCE (1200 A), NA-4 CONTROL UNIT- 1 PIECE

-META VISION LASER SEAM TRACKING SYSTEM - 1 PIECE

INSIDE DOUBLE TANDEM SUBMERGED ARC WELDING EQUIPMENT:

-LINCOLN DC 1500 POWER SOURCE (1500 A), NA-5 S CONTROL UNIT- 1 PIECE

-LINCOLN AC 1200 POWER SOURCE (1200 A), NA-4 CONTROL UNIT- 1 PIECE

-META VISION LASER SEAM TRACKING SYSTEM - 1 PIECE

SKELP END WELDING UNIT:

-LINCOLN DC 1500 POWER SOURCE (1500 A), NA-5 S CONTROL UNIT- 1 PIECE

SKELP END CUTTING UNIT:

-HYPERTHERM, HPR 260 XD, HIGH PERFORMANCE PLASMA ARC CUTTING SYSTEM (260 A)- 1

PIECE

PIPE CUTTING UNIT:

-HYPERTHERM, HPR 260 XD, HIGH PERFROMANCE PLASMA ARC CUTTING SYSTEM (260 A) -

1 PIECE

COMPLETE MILL FEATURING:

(1) EDGE MILLING MACHINE

(1)MILLING SYSTEM FOR EXTERNAL WELDING

(4) LINCOLN WELDING MACHINES

(2) METAVISION LASER SEAM TRACKING SYSTEMS

(2) HYPERTHERM PLASMA CUTTING SYSTEMS

WELD ENGINEERING FLUX RECOVERY SYSTEM

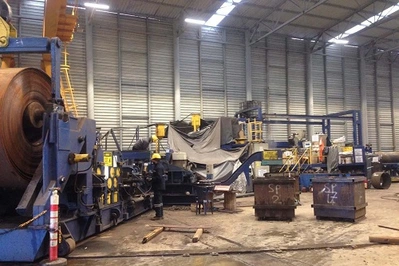

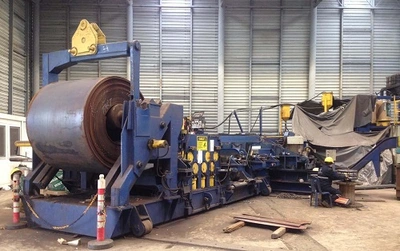

UNCOILER

EDGE GUIDES

FLATTENER

EDGE GUIDES

CROSS SEAM WELDER WITH HYDRAULIC CLAMPING

EDGE GUIDES

EDGE GUIDES

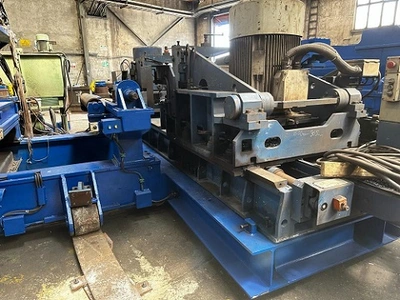

EDGE MILLING MACHINE

EDGE GUIDES

MAIN DRIVE ROLL

PRE-BENDER

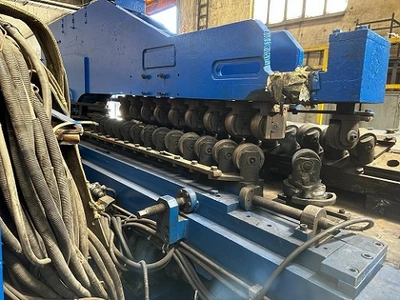

FORMING ROLL

PLASMA CUT-OFF

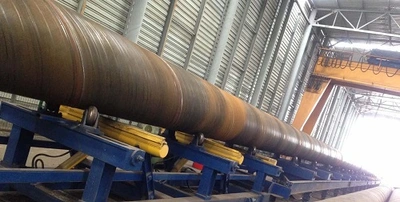

RUN OUT CONVEYOR

MOBIL OD SHOT BLAST UNIT

MOBIL SPIRAL MILL WITH OPTIONAL 30,690 FT/2 MOBIL BUILDING

90' SPAN X 35 TON OVERHEAD CRANE
