DSAW HEAVY GAUGE PIPE MAKING PLANT BY 3 ROLL BENDER
Overview
Specs
A.PRODUCT SIZE :
LENGTH : 6 METER MAX
WALL THICKNESS : 6- 45 MM
PIPE DIA : 450 - 4500 MM
B.EQUIPMENT LIST

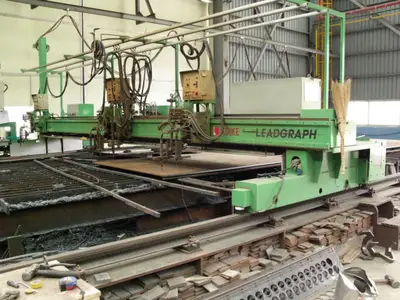

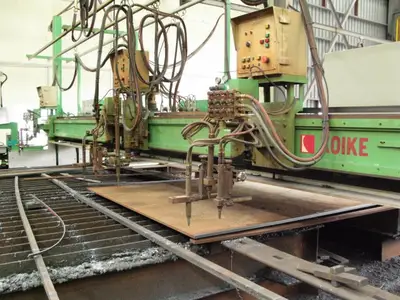

1.CNC GAS CUTTING MACHINE
BUILT : 1997
MAKER : KODAKI, JAPAN
NO. OF TORCH BLOCK : 3 BLOCK ( 4 TORCH X 3 BLOCK)
RAIL WIDTH : 7500 MM
RAIL LENGTH : 25,000 MM
FANUC PLC/SERVO MOTOR
WITH AUTO IGNITION AND POWDER MARKING DEVICE

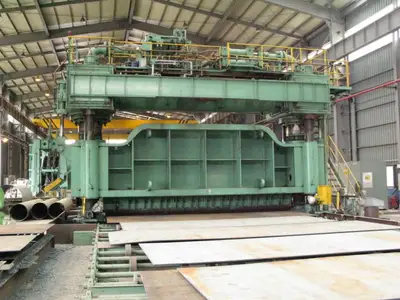

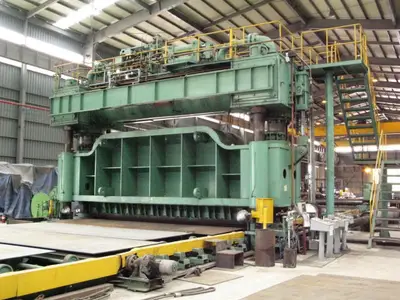

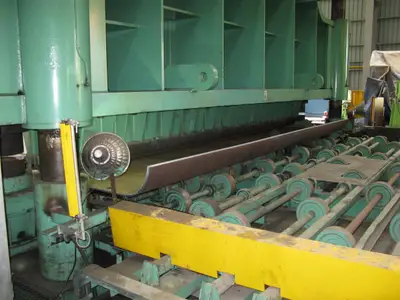

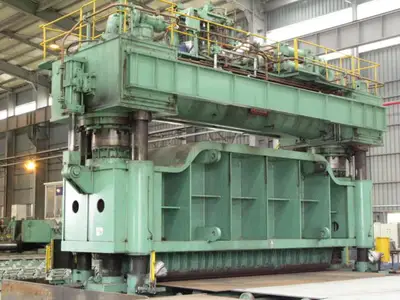

2.2000 TON HYDRAULIC PRESS
BUILT : 1999
BUILT : RYOSEN, JAPAN
MAX POWER : 2000 TON
PRESS WIDTH : 6100 MM
STROKE : 700 MM ( 365 MM WITH DIE )
MATERIAL LENGTH : 15,000 MM
DOWN STROKE SPEED : 195 MM/MIN
RETURN SPEED : 800 MM/MIN
PRODUCT PIPE DIA RANGE : 176 - 3000 MM
3.3 - ROLL BENDER
BUILT : 1999
MAKER ; RYOSEN, JAPAN
TOP ROLL DIA 400-580 MM
BOTTOM ROLL DIA : 400 MM
ROLL LENGTH : 6220 MM
PRODUCT LENGTH : 6000 MM MAX
PRODUCT SIZE : 450 MM- 4500 MM
UPGRADED IN 2006

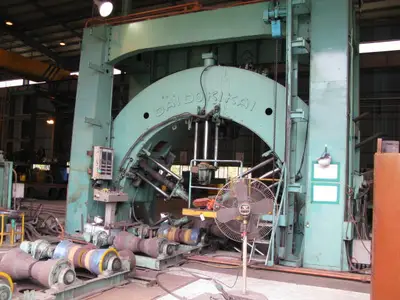

4.TACK WELDER AND REFORMER
BUILT : 1999
MAKER : DAEDONG, KOREA
PIPE TRANSFER SPEED : 20,000 MM/MIN
TURNING SPEED : 5,000 MM/MIN
TACK WELDING SPEED : 450 MM/MIN
PRESSURE CAPACITY : 44 TON
HYDRAULIC PRESSURE : MAX 140 KG/CM2,
NOMINAL 100 KG/CM2

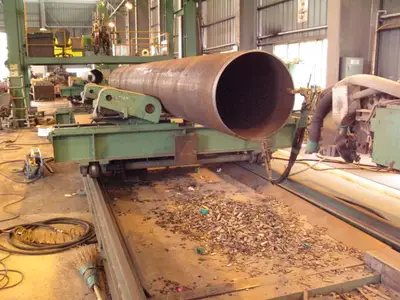

5.INSIDE WELDER
BUILT : 2007
MAKERT : KOREA
PRODUCT DIA : 450 - 4500 MM
PRODUCT LENGTH : 3-6 METER
ALLOWANCE POWER : 30 TON
ELECTRIC POWER : 150 KVA
WELDING SPEED : 0.2-1.0 M/MIN
TRAVERSE SPEED : 9 M/MIN

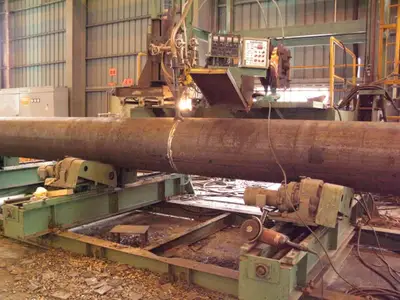

6.OUTSIDE WELDER
BUILT : 2007
MAKER : KOREA
PRODUCT DIA : 450 - 4500 MM
PRODUCT LENGTH : 3-6 METER
ALLOWANCE POWER : 30 TON
ELECTRIC POWER : 220 KVA
WELDING SPEED : 0.2-1.0 M/MIN
TRAVERSE SPEED : 9 M/MIN
7. WELDER & STAND FOR TWO PIPES
BUILT : 2007
PRODUCT LENGTH : 24 METER
POWER : 120 TON
ELECTRIC POWER 150 KVA
NO. OF TURNING ROLLER : 6 SETS
TURNING ROLLER MOTOR : 0.75 KW X 4 EA
8.GOUGING MACHINE
BUILT : 2007
9 OXYGEN GAS CUTTER : 3 SETS
10.AUTOMATIC DC WELDER
11.AUTOMATIC AC WELDER
