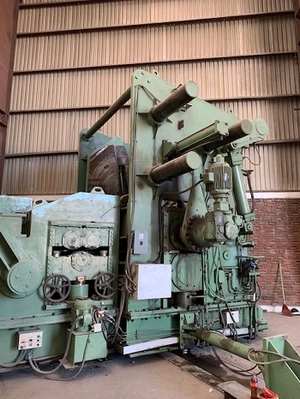

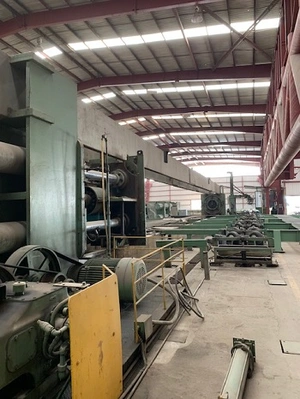

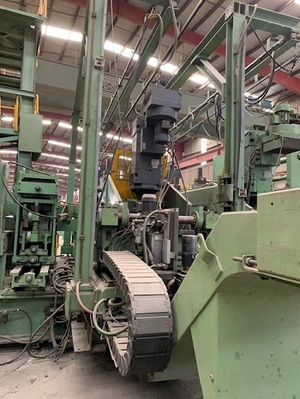

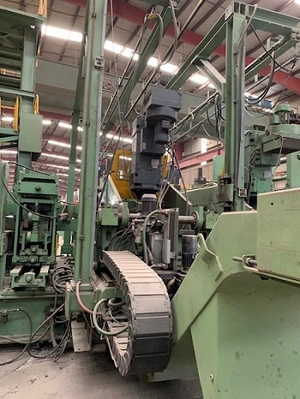

130" (3,300mm) x 1"(25.4mm) Blohm & Voss API Spiral Pipe Mill with Hydrotester

130" (3,300mm) x 1"(25.4mm) Blohm & Voss API Spiral Pipe Mill with Hydrotester

and (2) Beveling Machines

Manufacturer: Blohm & Voss

Year: 1978

Diameter 16" to 130"

Wall 0.250" to 1.000"

Grade up to X80

Pipe Length 12.2 to 24.4 m

Upgrade 3 roll leveler on uncoiler (2008)

Upgrade of fly welding of coils (2011)

Upgrade 2 edge milling units (4 heads in total)

2 units PWS, 600 mm diameter head, 110 KW per head (2007)

Upgrade main driver motors and control

45 KW x 2 motors (2011)

n1 = 1470 rpm; n2 = 1.103 rpm, roll diameter 750 mm

Upgrade to add mid forming roll, PRD (2015)

Hydrotester

1980

Diameter 20" to 80"

Pipe length 9 to 25 m

Max pressure 3500 psi

(2) PRD Pipe End Beveling Machines

Year:1994

20" to 72" Diameter Pipe

Includes Tooling for 20", 24", 30", 36", 40", 42", 48", 65.5" and 72"
