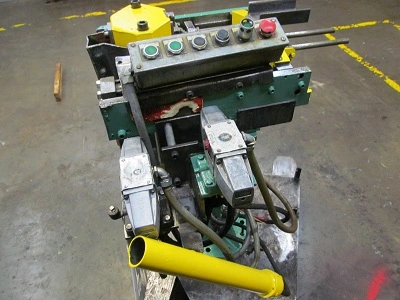

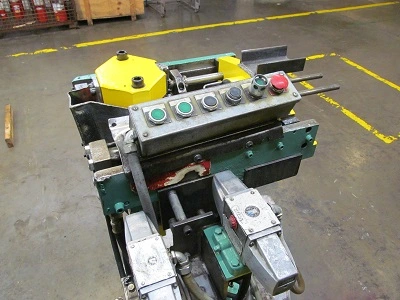

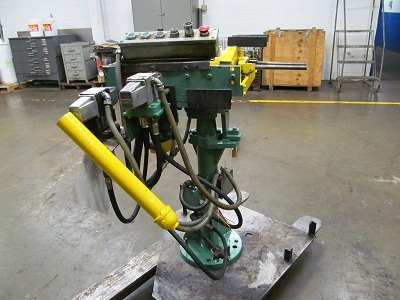

1 1/4" (31.25mm) MITCHELL HYDRAULIC TUBE PUSH POINTER

1 1/4" (31.25mm) MITCHELL HYDRAULIC TUBE PUSH POINTER

MANUFACTURER ............... GEORGE MITCHELL CO. (U.S.A.)

TYPE ....................... HYDRAULIC PUSH POINTER FOR TUBE

SINGLE DIE MODEL

RATED PUSH FORCE ........... 5,000 LB @ 1060 PSI NORMAL OPERATION

............................ 10,620 LB @ 2250 PSI MAX.

MAXIMUM TUBE O.D. .......... 1 1/4" (31.75mm)

MINIMUM TUBE O.D. .......... 1/4" (6.35mm)

DIE CASE SIZE............... 4" O.D. X 2-1/4" MAX. THICKNESS

POINTING SPEED

-ADVANCE.................... 352 I.P.M. @1000 PSI

-RETRACT.................... 264 I.P.M. @1000 PSI

STROKE ON POINT ............ 5" (127mm)

DIMENSIONS ................. 32" (812mm) x 36" (914mm) x 48" (1220mm) HIGH

WEIGHT ..................... 800 LBS. (362 KG)

EQUIPPED WITH:

FOUR-WAY DIE HOLDER

HYDRAULIC CLAMPING

PUSH BUTTON CONTROLS

SWIVEL BASE

HYDRAULIC CYLINDER

-MANUFACTURER............... MILLER

-MODEL NO................... H-68-B

-BORE....................... 4"

-STROKE..................... 2"

-ROD DIAMETER............... 1-3/4"

BUYER TO SUPPLY HYDRAULIC UNIT, 20 GALLON RESERVOIR, 7-1/2 HP MOTOR

**PRICE QUOTED AS IS WHERE IS SUBJECT TO PRIOR SALE**

**ALL SPECIFICATIONS ARE SUBJECT TO VERIFICATION BY PURCHASER**
