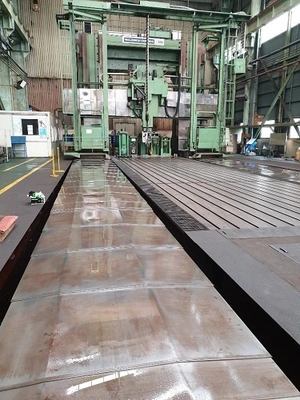

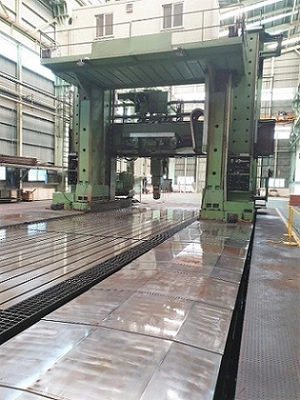

WALDRICH COBURG CNC TRAVELING GANTRY PLANO MILLER
Overview
Specs
FEATURES:
FULLY REBUILT & RETROFIT IN 2009
SIEMENS SINUMERIK 840 D
TRAVELLING GANTRY DESIGN
ADJUSTABLE RAIL
CAPACITY:
DISTANCE BETWEEN COLUMNS COVERS 204.72"
HEIGHT UNDER SPINDLE NOSE 208.66
TRAVELS:
X-AXIS GANTRY TRAVEL 826.77"
Y-AXIS HEAD TRAVEL 255.90"
Z-AXIS RAM STROKE 39.37"
W-AXIS CROSS RAIL VERTICAL TRAVEL 138.19"
SPECIFICATIONS:
T-SLOTTED WORK SURFACE 787.74" X 177.16"
WORK SURFACE WEIGHT CAPACITY 350 TON
SPINDLE MOTOR 134 HP
SPINDLE SPEEDS TO 2,000 RPM
SPINDLE TAPER 1PH7224-2NF15-OBAO
RAM CROSS SECTION 24.01" X 27.56"
C-AXIS, AUTO INDEXING
MACHINE FOOTPRINT 1,299" X 590"
MACHINE HEIGHT 413"
MACHINE WEIGHT 530 TON
EQUIPPED WITH:

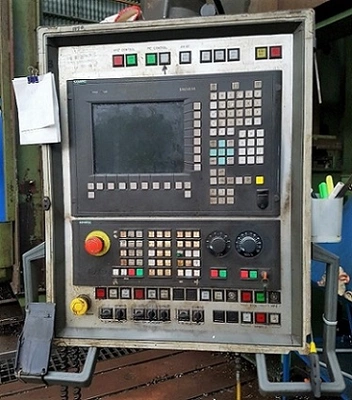

SIEMENS SINUMERIK 840D CNC CONTROL
PENDANT MOUNTED CRT
TELESCOPING STEEL WAY COVERS
SPINDLE UNIT ATTACHMENTS INCLUDING
FEATURES:
FULLY REBUILT & RETROFIT IN 2009
SIEMENS SINUMERIK 840 D
TRAVELLING GANTRY DESIGN
ADJUSTABLE RAIL
CAPACITY:
DISTANCE BETWEEN COLUMNS COVERS 204.72"
HEIGHT UNDER SPINDLE NOSE 208.66
TRAVELS:
X-AXIS GANTRY TRAVEL 826.77"
Y-AXIS HEAD TRAVEL 255.90"
Z-AXIS RAM STROKE 39.37"
W-AXIS CROSS RAIL VERTICAL TRAVEL 138.19"
SPECIFICATIONS:
T-SLOTTED WORK SURFACE 787.74" X 177.16"
WORK SURFACE WEIGHT CAPACITY 350 TON
SPINDLE MOTOR 134 HP
SPINDLE SPEEDS TO 2,000 RPM
SPINDLE TAPER 1PH7224-2NF15-OBAO
RAM CROSS SECTION 24.01" X 27.56"
C-AXIS, AUTO INDEXING
MACHINE FOOTPRINT 1,299" X 590"
MACHINE HEIGHT 413"
MACHINE WEIGHT 530 TON
EQUIPPED WITH:
SIEMENS SINUMERIK 840D CNC CONTROL
PENDANT MOUNTED CRT
TELESCOPING STEEL WAY COVERS
SPINDLE UNIT ATTACHMENTS INCLUDING
