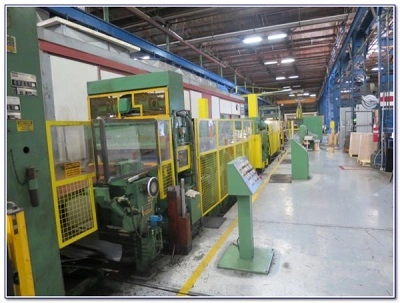

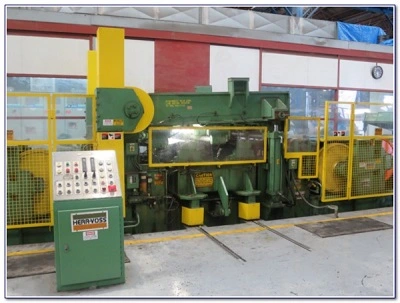

37" X .063" X 27,000# HERR VOSS TENSION LEVELING LINE, YR 1992

GENERAL LINE SPECIFICATIONS

MANUFACTURER - HERR VOSS

YEAR - 1992

MATERIAL - STAINLESSS STEEL & INCONEL

YIELD - 100,000 PSI MAX

SHEAR STRENGTH - 80,000 PSI MAX

COIL WEIGHT - 27,000#

MAX COIL WIDTH - 37"

MIN COIL WIDTH - 24"

COILRANGE - 60"

COIL ID - 20"

GAUGE RANGE - .008" - .063"

LINE SPEED - 300-600 FPM

ELECTRICITY - 480 V, 3 PH, 60 CYCLE

LINE DIRECTION - LEFT TO RIGHT

STATUS - INSTALLED AND OPERATING

LINE COMPONENTS

L-SHAPED TRAVERSING ELEVATING COIL CAR

MANDREL UNCOILER W/ OVERARM SNUBBER ROLL

& PAPER WINDER

HYDRAULIC EXPANSION

WICHITA WATER COOLED BRAKE

HYDRAULIC PEELER TABLE

POLYEROTHANE ENTRY PINCH ROLLS

EDGE GUIDE SYSTEM

ENTRY HYDRAULIC CROP SHEAR

SCRAP CART

EXIT TABLE

VERTICAL PINCH ROLL CENTERING GUIDES

BEHLEN STITCHER

ENTRY ROLLER GUIDE

(4) ROLL S-TYPE DRAG TENSION BRIDLE ROLLS

EACH ROLL MOTOR CONNECTED TO NUTTAL GEAR BOX AND UNIVERSAL CONNECTION TO ROLL

#1 ROLL MOTOR - 15 HP

#2 ROLL MOTOR - 25 HP

#3 ROLL MOTOR - 50 HP

#4 ROLL MOTOR - 100 HP

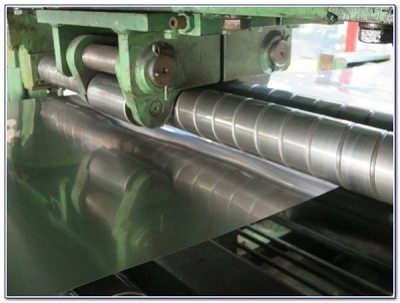

5-ROLL PRECISION TENSION LEVELER - 3 OVER 2

LEVELER PIVOT DEVICE

1 1/2" DIAMETER LEVELING ROLLS

(4) ROLL S-TYPE DRIVE TENSION BRIDLE ROLLS

EACH ROLL MOTOR CONNECTED TO NUTTAL GEAR BOX AND UNIVERSAL CONNECTION TO ROLL

#1 ROLL MOTOR - 150 HP

#2 ROLL MOTOR - 100 HP

#3 ROLL MOTOR - 50 HP

#4 ROLL MOTOR - 25 HP

6' INSPECTION TABLE

THICKNESS GAUGE (SOURCE NOT INCLUDED)

EXIT HYDRAULIC CROP SHEAR

SCRAP CART

HYDRAULIC EXIT CARROYOVER TABLE

EDGE GUIDE SYSTEM

DEFLECTOR ROLL

PAPER UNWINDER

HYDRAULIC THREADING TABLE

MANDRELL UNCOILER WITH HOLDDOWN ROLL

HYDRAULIC EXPANSION

BELT WRAPPER

L-SHAPED TRAVERSING ELEVATING COIL CAR

ELECTRICS - GE DRIVE SYSTEMS

CONTROLS, ELECTRICS, HYDRAULIC UNIT

CLICK ON THE FOLLOWING LINK TO WATCH A VIDEO OF THE MACHINE

https://youtu.be/-PgfYOcQif8
