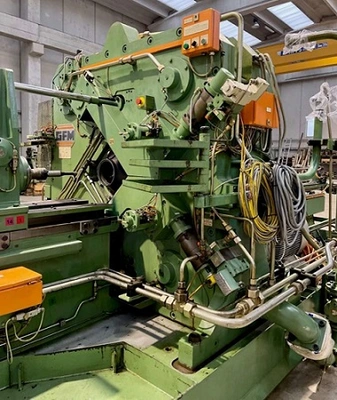

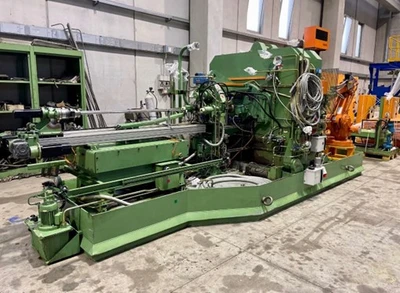

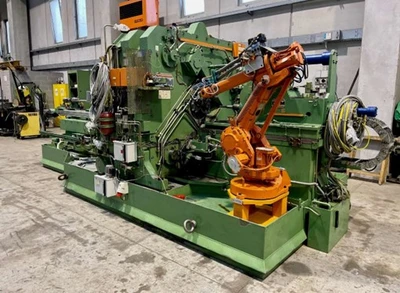

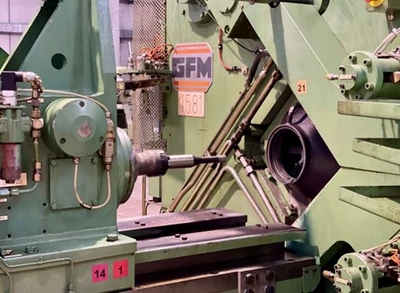

GFM No. SKK10 ROTARY FORGING MACHINE

Forging box:

Shear force per hammer: 1250 kN

Number of hammers: 4

Strokes per min: 1500 / min

Diameter adjustment range: 60 mm

Forging eccentricity: 2.5 mm

Hammer length: 106 mm

Bar/Tube diameter max: 58 mm

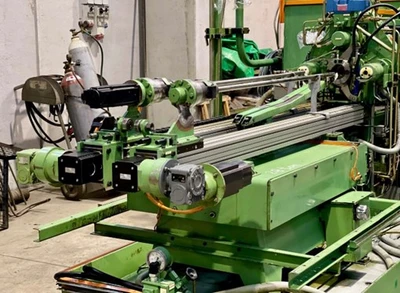

Clamping head:

Feed force: 1-70 kN

Feed: 5-500 mm/s

Clamping head bed:

Workpiece length max: 175 mm

Clamping head stroke: 600 mm

Hydraulic counter-holder:

Clamping force max: 2-40 kN

Stroke: 200 mm

Electric Equipment:

Forging motor: 75 kW/400 V/50 Hz

Clamping head motor: 2.2 kW/400 V/50 Hz

Various hydraulic motors: 35 kW/400 V/50 Hz

Remaining consumers: 4.5 kW/400 V/50 Hz

Auxiliary equipment: 1.3 kW/220 V/50 Hz

Total nominal power: 118 kW

Cooling water:

Pressure: 3-6 bar

Consumption at 35C entry / 40 C exit: 9 m3/h

Air:

Pressure min: 5 bar

Consumption (air drawn in): 1 Nm3/min
