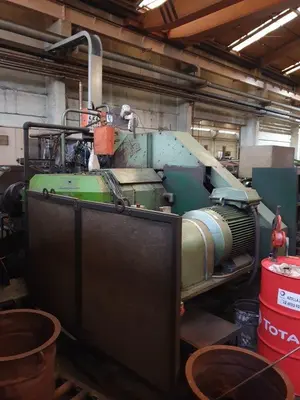

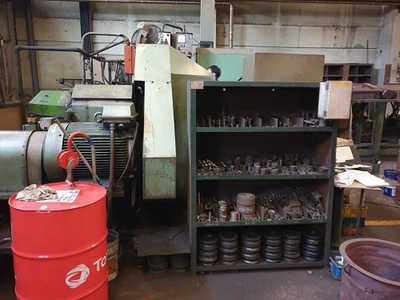

NEDSCHROEF MW48 HI-SPEED HOT NUT FORMER

Nedschroef Model MW-48 BUILT NEW 1975

Hi-Speed Hot Nut Former -

by Nedschroef . - HERENTALS BELGIUM

Maximum production per minute........... 150

Major Specifications

Metric Standard

Maximum across flats hex. nuts......... 48.0 mm (1.889")

Maximum across flats square nuts....... 41.0 mm (1.614")

Maximum diameter products.............. 53.0 mm (2.087")

Maximum product height................. 40.0 mm (1.575")

Minimum product height................. 13.0 mm (0.512")

Maximum bar diameter raw material...... 38.0 mm (1.496")

Maximum cutoff length.................. 60.0mm (2.362")

Minimum cutoff length.................. 15.0mm (0.590")

Diameter feed rollers....... ......... 180.0mm (7.086")

Diameter of dies....................... 90.0mm (3.543")

Height of dies......................... 75.0mm (2.952")

Centre to centre distance of dies...... 115.0mm (4.527")

Slide travel........................... 180.0mm (7.087")

Forging pressure (tons)........ 105.0 mt (115.5 st)

Motor output ....... 44.0 kw (60.00 kg)

Weight............... 18,000 kg (39,600#)

Floor space (without heating)

Length.............. 4,650.0 mm (183.0")

Width............... 2,370.0 mm (93.2")

* Diameter of raw material is approx 80-85% of across flats dimensions of nuts

or of diameter of circular

products.

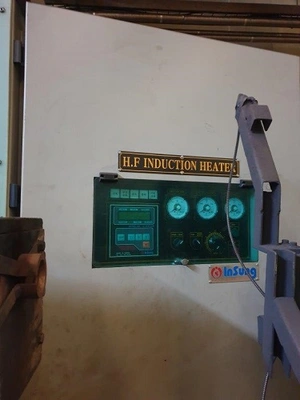

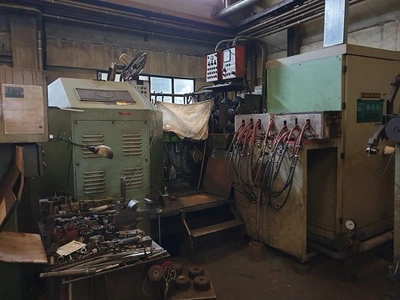

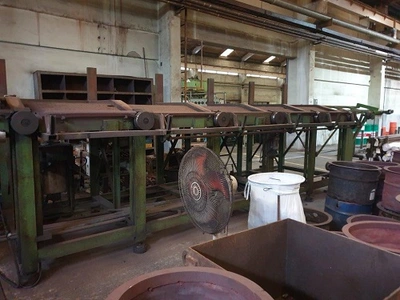

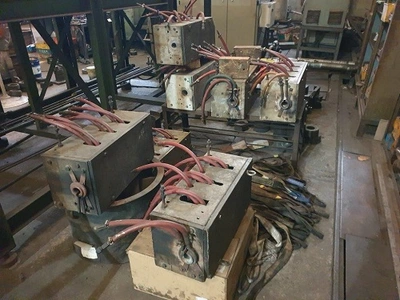

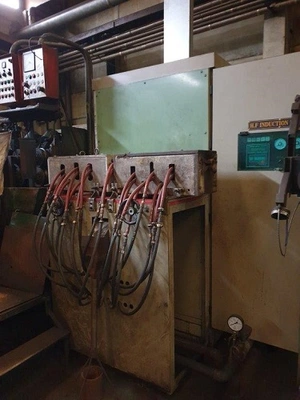

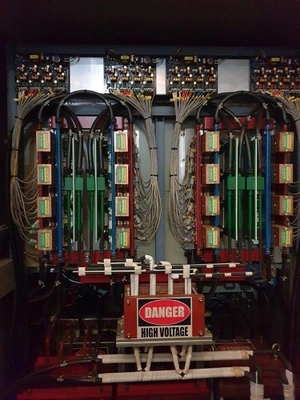

MACHINE COMPLETE WITH INDUCTION HEATER AND BAR RACK

LINE IS CURRENTLY UNDER POWER.
