68" x .032" x 45,000# LAMINATING/BONDING ADHESIVE LINE

GENERAL SPECIFICATIONS:

MANUFACTURER - CUSTOM BUILT

YEAR - 1990

LINE DIRECTION - LEFT to RIGHT

MATERIALS - STEEL & ALUMINUM

THICKNESS - .032" (STEEL), 0.040" (ALUMINUM)

COIL WIDTH - 68" MAX.

COIL WEIGHT - 45,000# MAX. (ENTRY & EXIT?)

COIL OUTSIDE DIAMETER - 72" MAX ESTIMATED (ENTRY & EXIT)

COIL INSIDE DIAMETER (ENTRY) - 20" TO 24" ESTIMATED

COIL INSIDE DIAMETER (EXIT) - 20" ESTIMATED

LINE SPEED - 25 FPM MAX.

LINE COMPONENTS:

FOUR ARM ENTRY STORAGE TURNSTILE #1

FLOOR LEVEL COIL LOADING CAR #1

CANTILEVERED MANDREL UNCOILER #1 w/ 20" / 24" HYDRAULIC DRUM, SLIDE BASE,

HOLD-DOWN ROLL AND 125 HP FEED-UP DRIVE / DRAG GENERATOR BRAKE

ELECTRONIC EDGE CONTROL SYSTEM #1

PIVOTING AND TELESCOPING PEELER BLADE #1

ENTRY PINCH ROLLS #1

FOUR ARM ENTRY STORAGE TURNSTILE #2

FLOOR LEVEL COIL LOADING CAR #2

CANTILEVERED MANDREL UNCOILER #2 w/ 20" / 24" HYDRAULIC DRUM, SLIDE BASE,

HOLD-DOWN ROLL AND 125 HP FEED-UP DRIVE / DRAG GENERATOR BRAKE

ELECTRONIC EDGE CONTROL SYSTEM #2

PIVOTING AND TELESCOPING PEELER BLADE #2

ENTRY PINCH ROLLS #2

UPPER AND LOWER STRIP THREADING SYSTEM w/ NON-MARKING ROLLERS

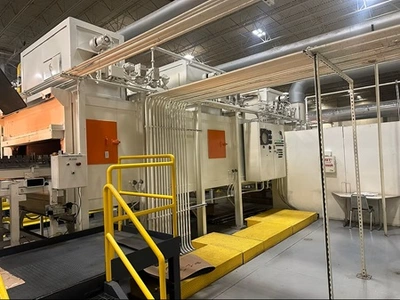

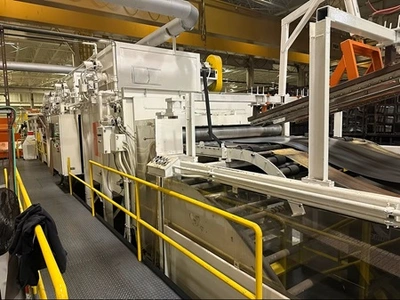

"UNITHERM" DUAL LEVEL, THREE-ZONE, NATURAL GAS FIRED FURNACE #1?

UPER AND LOWER STRIP CASCADE ROLLS w/ NON-MARKING ROLLERS

VIDEO INSPECTION SYSTEM w/ SEVEN (7) CAMERA VIEWS?

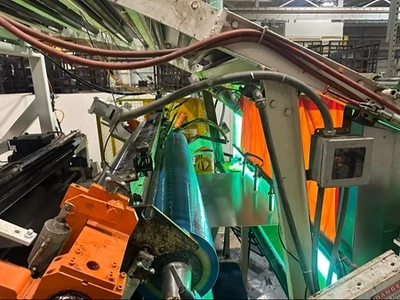

INJECTOR STYLE STRIP LAMINATING HEAD w/ DC DRIVE (SLITTER)

"BLACK BROTHERS" TRAVERSING HORIZONTAL COIL COATER

"UNITHERM" SINGLE LEVEL, THREE-ZONE, NATURAL GAS FIRED FURNACE #2?

STRIP CENTERING GUIDES

EXIT STRAIGHTENER

EXIT CROP SHEAR

PAD TYPE TENSION STAND

THREE (3) ROLL EXIT BRIDLE SET

CANTILEVERED MANDREL RECOILER w/ POLY COVERED WINDING DRUM, & SLIDE BASE

NON-MARKING BELT WRAPPER FOR HIGH-SPEED THREADING

PIT TYPE COIL UNLOADING CAR

OPERATOR CONTROL STATIONS

AC CONTROLS

VARIABLE SPEED DRIVE CONTROLS

CLOSED LOOP HYDRAULIC SYSTEM
