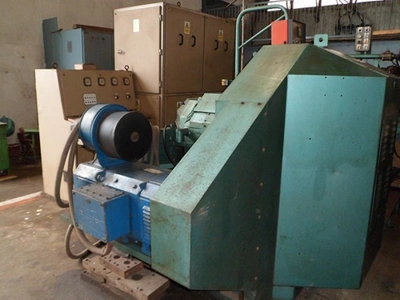

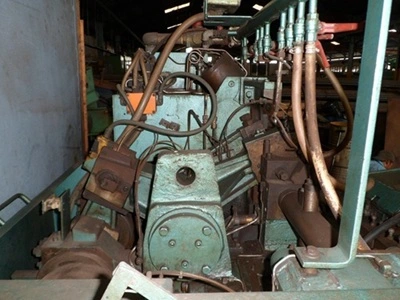

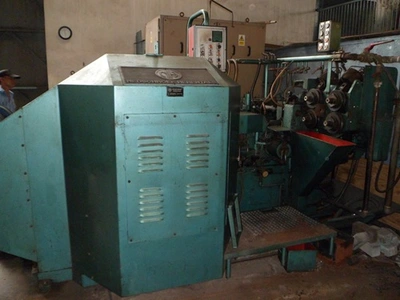

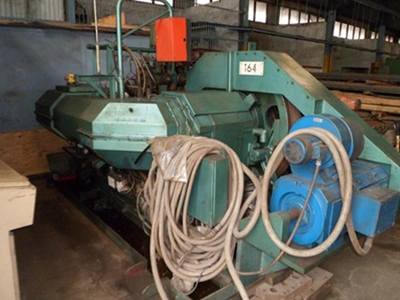

NEDSCHROEF #MW-32, HI-SPEED HOT NUT FORMER
Overview
Specs
YEAR: 1996
MAXIMYM PRODUCTION PER MINUTE: 180
MAJOR SPECIFICATIONS:
METRIC STANDARD
COMBINED FORGING TONNAGE ........... 60.0 MT .......... 60.0 ST
MAX. NUT SIZE ...................... 22.0 MM .......... 0.866"
MIN. NUT SIZE ...................... 14.0 MM .......... 0.551"
MAX. ACROSS FLATS HEX. NUTS ........ 32.0 MM .......... 1.259"
MAX. ACROSS FLATS SQUARE NUTS ...... 32.0 MM .......... 1.181"
MAX. DIAMETER PRODUCTS ............. 36.0 MM .......... 1.417"
MAX. PRODUCT HEIGHT ................ 27.0 MM .......... 1.062"
MIN. PRODUCT HEIGHT ................ 9.0 MM .......... 0.354"
MAX. BAR DIAMETER RAW MATERIAL ..... 26.0 MM .......... 1.023"
MAX. CUT-OFF LENGTH ................ 44.0 MM .......... 1.732"
MIN. CUT-OFF LENGTH ................ 12.0 MM .......... 0.472"
DIAMETER FEED ROLLS ................ 180.0 MM ......... 7.086"
DIAMETER OF DIES ................... 60.0 MM .......... 2.362"
HEIGHT OF DIES ..................... 50.0 MM .......... 1.968"
CENTER TO CENTER DISTANCE OF DIES .. 80.0 MM .......... 3.149"
SLIDE TRAVEL ....................... 140.0 MM ......... 5.511"
MAIN MOTOR ......................... 22.0 KW .......... 29.0 HP
NET WEIGHT ......................... 9.000 KGS 19,800 LBS
FLOOR SPACE:
LENGTH ............................. 382.0 CM ......... 150.3"
WIDTH .............................. 206.0 CM ......... 81.1"
COMPLETE WITH:
CRANSHARFT CUT-OFF MECHANISM

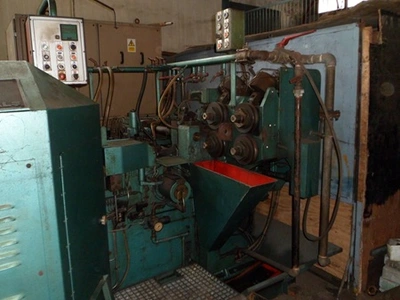

AIR OPERATED FEED ROLLERS
TWO FINGER PAIR TRANSFER OF BLANK FROM CHUTE TO FORMING DIE
MACHINE IS DRIVEN THROUGH AIR-OPERATED CLUTCH AND BRAKE SYSTEM

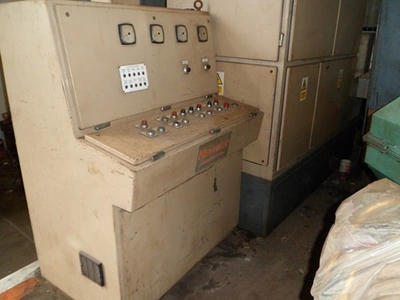

OPERATORS PUSH BUTTON CONTROL STATION

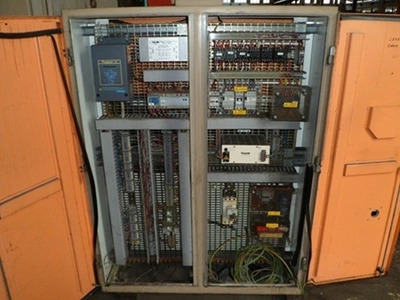

ELECTRICS
*NOTE MACHINE WAS REBUILT BY NEDSCHROEF IN HERENTAL BELGIUM

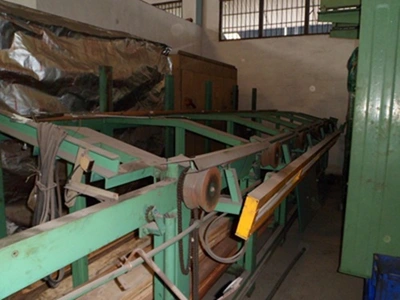

NEWELCO INDUCTION HEATER & BAR RACK
