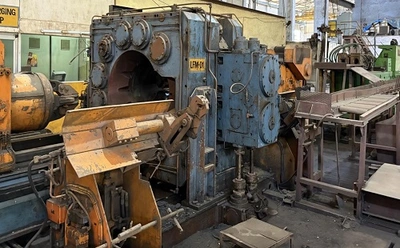

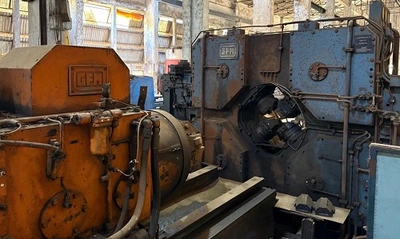

GFM #SX-13 ROTARY FORGING MACHINE

GFM #SX-13 ROTARY FORGING MACHINE

MANUFACTURER: GFM, AUSTRIA

TYPE: SX-13

YEAR: 1979

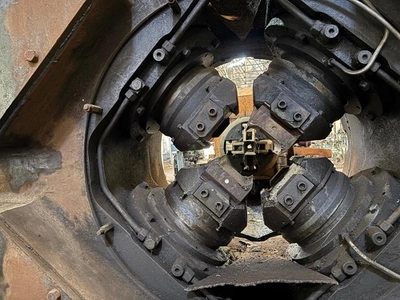

NO. OF HAMMERS: 4

FORCE PER HAMMER 1.600 KN (160 MT)

NUMBER OF STROKES PER MINUTE: APPROX. 620

LENGTH OF THE HAMMER: 270 MM (10.63")

HAMMER ADJUSTMENT: MAX. 80 MM (3.15")

MAX. STARTING SIZE: ROUND 130 MM (5.12") OR SQUARE 115 MM (4.53")

MIN. FINISH SIZE: ROUND 26 MM (1.02") OR SQUARE 24 MM (.94")

MAX. THICKNESS/WIDTH RATIO 1 : 5.5

MAX. PRODUCT WIDTH: 110 MM (4.33")

MAX. PIECE LENGTH: 4.000 MM (13' 1.5")

MAX. DIAM. IN THE MANIPULATOR: 130 MM (5.12")

MANIPULATOR TORQUE FORCE: 3 KN (674 LB. FORCE)

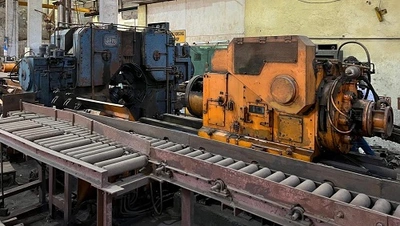

LINE COMPLETE WITH:

- FORGING MACHINE SX-13

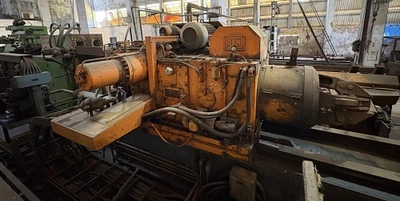

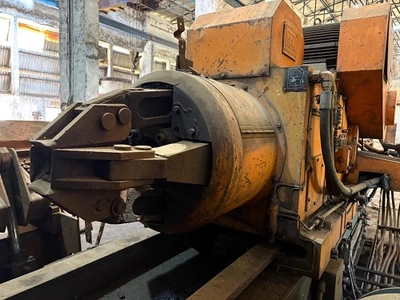

- 2 (TWO) MANIPULATORS WITH BEDS

- LOADING / UNLOADING DEVICES

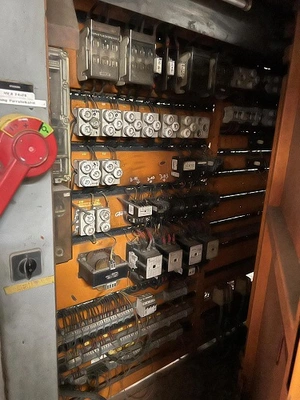

- ELECTRICS WITH CONTROLS AND PULPITS

- HYDRAULICS AND PNEUMATICS

- INDUCTION HEATER

- AVAILABLE SPARES AND TOOLING

- AVAILABLE DOCUMENTATION
