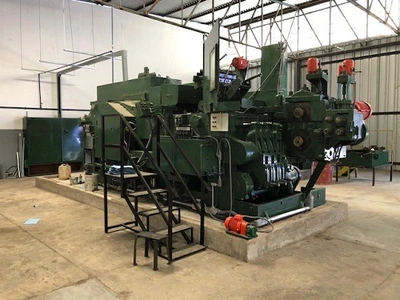

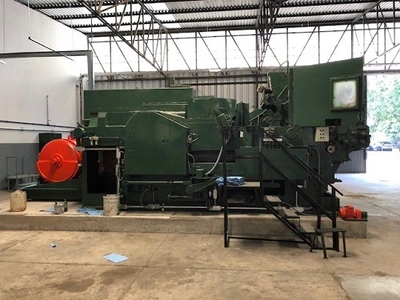

1" NATIONAL MODEL# 1000 LONG STROKE 4-DIE PROGRESSIVE HEADER
Overview
Specs
1" NATIONAL MODEL# 1000 LONG STROKE 4-DIE PROGRESSIVE HEADER
Number of forming dies .......................... 4
Production per minute .............................. 65
Major Specifications:
Max. Cutoff diameter......... 1.125" ........... 28.6mm
Min. Cutoff length............... 1.5" ............... 38.1mm
Max. Cutoff length.............. 11.0" ............. 279.4mm
Max. Kickout stroke (die)... 9.0" ............... 220.5mm
Kickout stroke punch......... 2.25" ............. 56mm
Across flats hex................... 1.42" ............. 61mm
Die diameters....................... 5.375" ........... 136.5mm
Punche diameters................ 4.375" ........... 111.1mm
Total Heading Load............ 400tons.......... 400tons

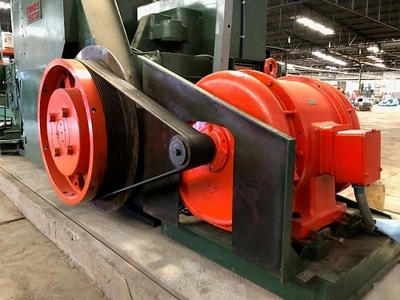

Main Motor.......................... 100HP............ 75kw
Net weight (approx.).......... 139,800lbs..... 63,545kgs
Floor Space:
Length................................... 25'8" ............
7,823mm
Height................................... 10'1" .............
3,353mm
Width.................................... 10'11" ...........
3,327mm
Complete with:
Heat treated allow steel bedframe
Over-arm heading ram

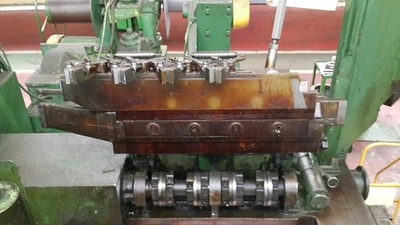

(4) Four full forming dies
Bushing cutoff system
Arranged for TKO in all stations
Individual adjustment of punch holders
Pneumatically conotrolled feed roll gripping pressure

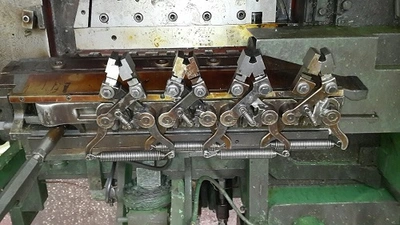

Individually adjustable finger opening & closing transfer
Pneumatic transfer lift

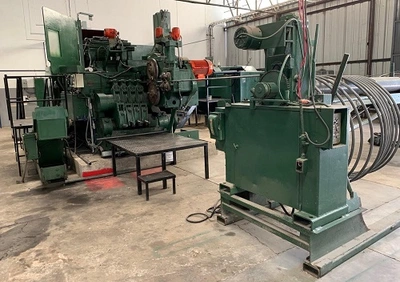

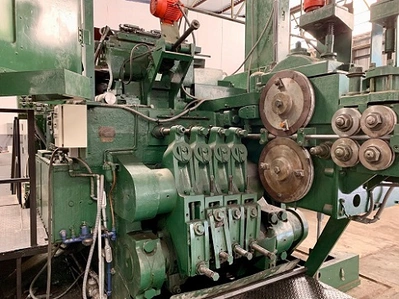

(5) roll power straightener (mounted on machine)
Recirculating oil lubriction system
Funtionally located operator adjustments and controls
Spare tooling, operators platform and wire stand
