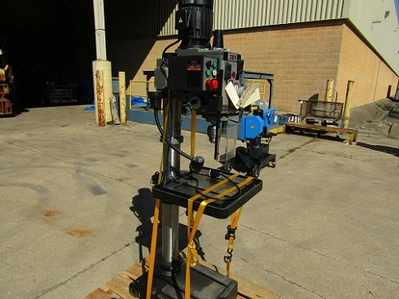

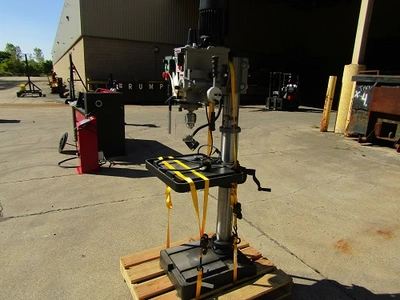

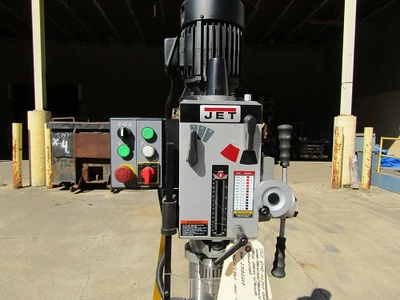

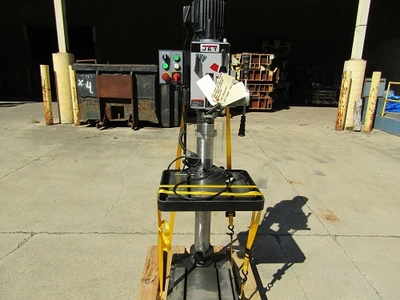

JET GHD-20PFT GEARED HEAD DRILLING/TAPPING DRILL PRESS WITH POWER DOWNFEED

JET GHD-20PFT GEARED HEAD DRILLING/TAPPING DRILL PRESS WITH POWER DOWNFEED

MANUFACTURER - JET

TYPE - GEARED HEAD DRILL PRESS WITH POWER DOWNFEED

CONDITION - LIKE NEW CONDITION

DRILLING CAPACITY CAST IRON (IN.) 1-1/2

DRILLING CAPACITY MILD STEEL (IN.) 1-1/4

DRILLS TO CENTER OF CIRCLE (IN.) 20

MODEL NUMBERGHD-20PFT

MOTOR (HP)2 HP (2 SPEED), 230V, 3PH

SPINDLE SPEEDS 60, 120, 130, 230,260,450,460, 800, 900, 1,500, 1,600, 3,000

(RPM)

SPINDLE DISTANCE TO BASR (IN.) 44-5/16

SPINDLE DISTANCE TO TABLE (MAX) (IN.) 30-1/2

SPINDLE TAPER (IN. X TPI) MT-3

SPINDLE TRAVEL (IN.) 4-1/2

STYLE (TYPE) GEARED HEAD

T-SLOT CENTERS (IN.) 9

TABLE SIZE (LXW) (IN.) 25 1/2

TAPPING CAPACITY CAST IRON (IN.) 15/16

TAPPING CAPACITY MILD STEEL (IN.) 15/16

WEIGHT 708LBS

WORK TABLE WEIGHT CAPACITY 275 LBS

CATALOG SPECIFICATIONS - ALL SPECIFICATIONS TO BE CONFIRMED BY PURCHASER
