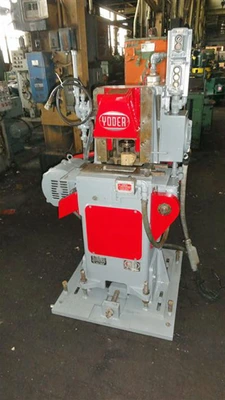

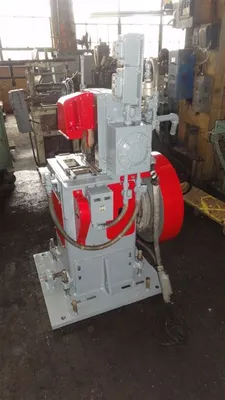

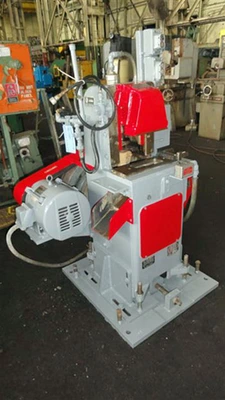

25 TON YODER MODEL #P25 CUTOFF MACHINE

GENERAL SPECIFICATIONS:

CUTTING CAPACITY, MAXIMUM SECTION AREA, MILD STEEL, DOUBLE SHEAR DIE

(DEPENDENT UPON SHAPE OF SECTION) ............... 0.25" SQ.

MAXIMUM TUBE SIZE (O.D. x THICKNESS) ............... 1-1/4" x .050"

MAXIMUM STOCK SPEED (FPM) .......................... 150

MAXIMUM NUMBER CUTTING (STROKES PER MINUTE) ........ 100

MINIMUM LENGTH OF CUT WITH STANDARD TRIGGER:

AT 100 FPM ............ 15"

AT 125 FPM ............ 18"

AT 150 FPM ............ 22"

MAXIMUM WIDTH OF SECTION

(DEPENDENT UPON SHAPE) ........................... 5"

CUTTING STROKE (STANDARD) .......................... 2-1/4"

CUTTING STROKE (MAXIMUM-SPECIAL) ................... 2-3/4"

ELEVATION, FLOOR LINE TO BOTTOM OF STOCK:

MINIMUM ............... 34-1/2"

MAXIMUM ............... 38"

LATERAL ADJUSTMENT OF FRAME ON SUB-BASE:

(EACH SIDE OF CENTERLINE) ........................ 3"

AIR CONSUMPTION AT 100 CUTTING:

(STROKES PER MINUTE) AT ATMOSPHERIC PRESSURE ..... 1.2 CFM

MOTOR: 2 HP 3/60/208-220/440 (1160) RPM WITH CONTROLS

AIR CLUTCH

RAM: 9" l-r x 3-1/2" f-b

O.A.: 3'4" l-r x 3'6" f-b x 5'2" H

WEIGHT: (approx.) 2,000 Lbs.
