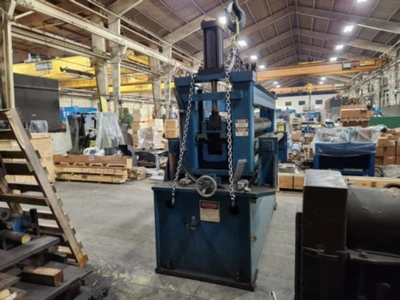

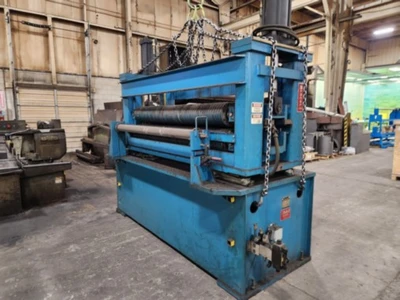

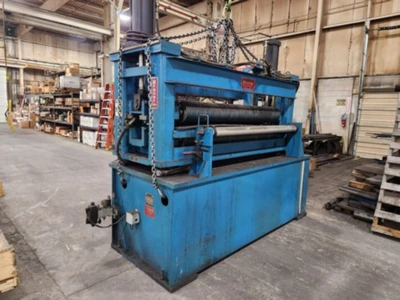

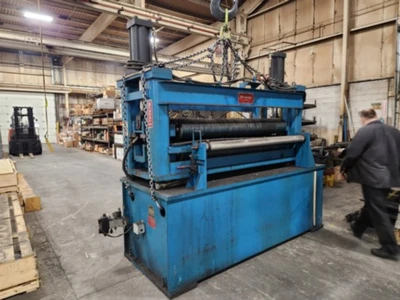

60" x .135" BRANER BELT BRIDLE TENSION STAND

Manufacturer: Braner

Coil Width: 60" max.

Strip Thickness: .135" max., .020" min.

Slit Coil Width: 2" or Wider per Individual Mult

Line Direction: Right to Left

Line Speed: 1,000 FPM max.

Separator Spindles: Two (2) (One Entry and One Exit)

Spindle Sleeve Diameter: 3.50" OD (Sleeves by Customer)

Disc Diameter: 7.00" OD, 3.50" ID (Discs by Customer)

Spacer Diameter: 4.50" OD, 3.50" ID (Spacers by Customer)

The "Belt Bridle" tension stand provides back tension necessary to wind

surface critical slit material into tight coils.

Multiple, narrow width tension belts are mounted on pulleys rotating in anti-

friction bearings.

The bottom belt assembly is fixed in elevation, and the top belt assembly is

clamped by hydraulic cylinders.

The belt assemblies are mounted on a precision slide base, which can be

shifted front to back by manual handwheel to align belts properly with slit

mults.

The tension belts slide against water cooled steel jackets. A water-cooling

system IS NOT INCLUDED and must be supplied by Customer.

Provisions are included for entry and exit strip separator spindles to guide

material. Separator spindles, discs and spacers ARE NOT INCLUDED and must be

supplied by Customer.
