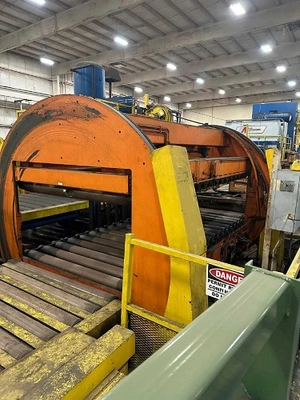

ATLAS 20,000LBS BUNDLE TURNOVER

ATLAS 20,000LBS BUNDLE TURNOVER

84" BETWEEN FRAME AT END, 162" BETWEEN FRAME AT SIDE (ENDS OF FRAMES

ARE 6" AT EACH END, SO TECHNICALLY YOU COULD TURN OVER 174" WIDE MATERIAL

LOADING FROM THE END)

36.5" GAP BETWEEN UPPER & LOWER ROLLS WIDE OPEN

CLAMPING ACTUATED BY HYDRAULIC MOTOR/S DRIVING FOUR (4) BALL SCREW

JACKS

80" ROLL FACE, 6" DIA. CONVEYOR ROLLS ON 10" CENTERS

EDGE OF ROLL IS APPROX. 16" FROM THE BASE OF FRAME ON SIDE OPPOSITE OF

ELECTRICAL PANELS.

10" TO END OF ROLL SHAFT THROUGH PILLOW BLOCK BEARING

FLOOR TO TOP OF ROLLS IS 52.75"

TURNOVER FRAME IS APPROX. 16.5' IN LENGTH

15' LONG ENTRY CONVEYOR

15' LONG EXIT CONVEYOR

ELECTRICS- ALLEN BRADLEY: 2711-K5A8X PANELVIEW 550 TERMINAL & I/O'S

MUST CONFIRM BUT IT'S BELIEVED TO HAVE A STERLING SCALE BUILT INTO THE

CONVEYOR.

CAPABLE OF SIDE LOAD AS WELL AS THE DESIGNED END LOADING.

SHIPPING DIMENSIONS: 16.5'L X 13'?W X 139"H
