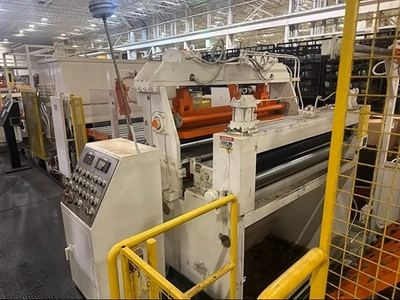

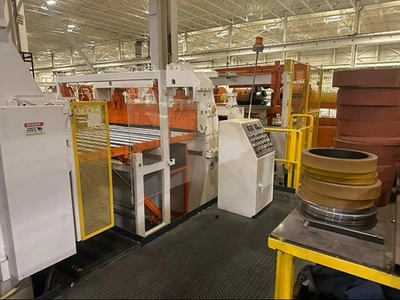

72" x .125" x 75,000, STRILICH/BRADBURY MULTI-BLANKING LINE

GENERAL SPECIFICATIONS:

MANUFACTURER - STRILICH - BRADBURY

YEAR - 1996

LINE DIRECTION - RIGHT to LEFT

MATERIALS - C.R.S, HRP&O, HOT DIP GALV., ELECTRO GALV., PRE-PAINTED

YIELD STRENGTH - 20,000# PSI MIN., 80,000 PSI MAX.

THICKNESS - .015" MIN., .125" MAX.

COIL WIDTH - 12" MIN., 74" MAX.

COIL WEIGHT - 75,000# MAX.

COIL OUTSIDE DIAMETER - 72" MAX.

COIL INSIDE DIAMETER - 20" TO 24"

BLANK LENGTH - 12" MIN., 180" MAX.

SINGLE BLANK WIDTH - 12" MIN., 74" MAX.

MULTI-BLANK WIDTH - 8" MIN., 36" MAX.

LEVELER TYPE - 17 ROLL BRADBURY, 7 FLIGHT, 4 HIGH, HYDRAULIC DESIGN

SLITTER HEAD TYPE - HALF-HEAD INJECTOR w/ SHUTTLE TRAY

NUMBER OF SLITTER HEADS - TWO (2)

SLITTER ARBOR DIAMETER - 8"

SHEAR TYPE - HIGH SPEED MECHANICAL

ROLL FEEDER TYPE - FULL WIDTH ROLLS, 4 HIGH

STACKER TYPE - AIR FLOAT w/ MECHANICAL DIVIDERS

PACK HEIGHT - 30" MAX. INCLUDING PALLET ESTIMATED

PACK WEIGHT - 20,000# MAX.

LINE SPEED - 250 FPM MAX.

UNCOILER DRIVE - 100 HP UNICO DC FEED-UP DRIVE / DRAG GENERATOR BRAKE

LEVELER DRIVE - 200 HP DC

SLITTER DRIVE - 75 HP DC

SCRAP BALLER DRIVE - AC MOTOR

ROLL FEEDER DRIVE - AC INDUCTION MOTOR

SHEAR DRIVE - 15 HP AC MOTOR

LINE COMPONENTS:

COIL STORAGE SADDLES w/ ONE (1) STORAGE POSITION

END TRAVELING COIL LOADING CAR

AUTOMATIC FEED DUAL EXPANDING MANDREL UNCOILER w/ 100 HP DC FEED-UP DRIVE /

DRAG GENERATOR BRAKE

MACHINE MOUNTED HOLD DOWN ROLL

PIVOTING AND TELESCOPING PEELER BLADE

AUTOMATIC EDGE GUIDE SYSTEM

ENTRY PINCH ROLLS

ROLLER TYPE STRIP CENTERING GUIDES

ENTRY CROP SHEAR w/ THREADING TABLE AND SCRAP CART

LEVELER ENTRY PINCH ROLLS

BRADBURY 17 ROLL, 7 FLIGHT, 4 HIGH, HYDRAULIC LEVELER w/ ??? HP DC DRIVE

STRIP INSPECTION AND CARRY-OVER TABLE

ROLLER TYPE STRIP CENTERING GUIDES

SLITTER BASE AND 75 HP DC DRIVE

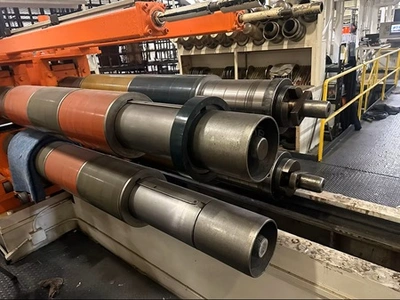

TWO (2) PACKED ARBOR INJECTOR SLITTER HEADS w/ 8" ARBORS

POWERED SLITTER HEAD INJECTOR SYSTEM

SLITTER HEAD STORAGE TRAY w/ TWO (2) STORAGE POSITIONS

ONE (1) LOT of SLITTER AND SEPARATOR TOOLING w/ CABINETS

HEAVY-DUTY EDGE TRIM SCRAP BALLER SYSTEM w/ AC MOTOR

STRIP INSPECTION AND CARRY-OVER TABLE

LOOPING PIT QUADRANT TABLES w/ BELT STYLE THREADING TABLE

ROLLER TYPE STRIP CENTERING GUIDES w ENTRY STRIP SEPARATOR SPINDLE AND

ADJUSTABLE STRIP BRIBLE ROLL ASSEMBLY

FULL WIDTH, 4 HIGH ROLL FEEDER

HIGH SPEED MECHANICAL SHEAR w/ AC MOTOR

PIVOTING BELT CONVEYOR FOR INSPECTION AND TRANSPORTING BLANKS INTO STACKER (OR

SCRAP CART)

BELT CONVEYOR MOUNTED TRAVERSING BLANK HOLD-DOWN SYSTEM

BELT CONVEYOR MOUNTED STACKER FEED ROLLS

15 FOOT NOMINAL AIR FLOAT STACKER w/ AIR BLOWER AND EIGHT (8) ADJUSTABLE STRIP

DIVIDERS

15 FOOT NOMINAL POWERED SKID INJECTOR

15 FOOT NOMINAL ELEVATING STACKER LIFT TABLE w/ END DISCHARGE ROLLERS

20 FOOT NOMINAL PACKAGE RUNOUT w/ END DISCHARGE ROLLERS AND SCALE

OPERATOR CONTROL STATIONS

AC CONTROLS

VARIABLE SPEED DRIVE CONTROLS

CLOSED LOOP HYDRAULIC SYSTEM
