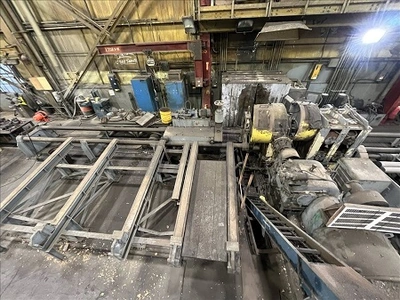

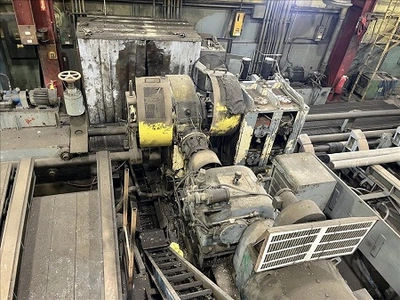

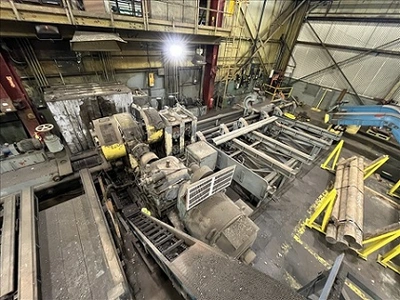

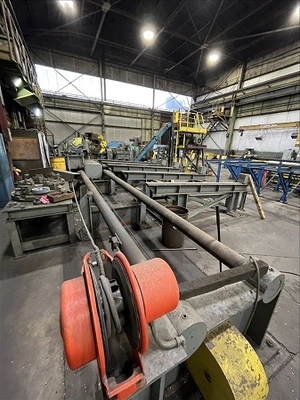

14" BLAW-KNOX / MEDART #14 RFRG BAR TURNER / PEELER

14" BLAW-KNOX / MEDART #14 RFRG BAR TURNER / PEELER

CATALOGUE SPECIFICATIONS

BAR SIZE: 6" DIA. MIN. TO 14" DIA. MAX. - ROUGH

MINIMUM BAR LENGTH: 9' FEED ROLLS TO GRIP

13' GRIP TO GRIP

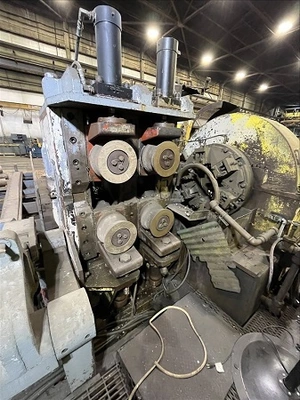

FEED ROLLS: 20 HP MOTOR - 35/300/1200 RPM

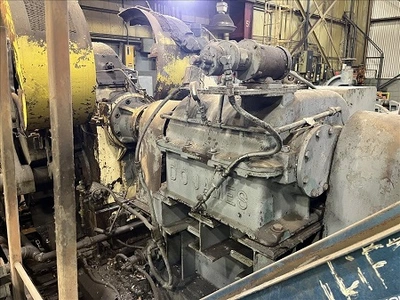

GEAR RATIO: 1:1536 LOW - 1:500 HIGH

THRU PUT SPEED LOW: 0.75 IPM TO 24.4 IPM

THRU PUT SPEED HIGH: 2.3 IPM TO 81.1 IPM

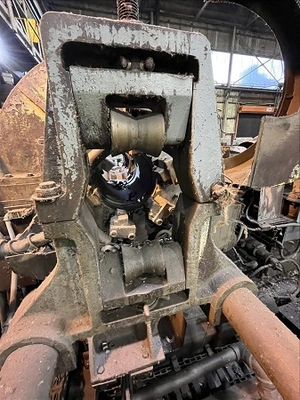

CUTTER HEADS: 150 HP MOTOR, 30/300/1200 RPM

SPINDLE SPEEDS LOW: 1.54 RPM TO 61.75 RPM

SPINDLE SPEEDS HIGH: 5.38 RPM TO 216 RPM

APPROX. OVERALL DIMENSIONS: 65'6" L X 17'6" W

EQUIPPED WITH:

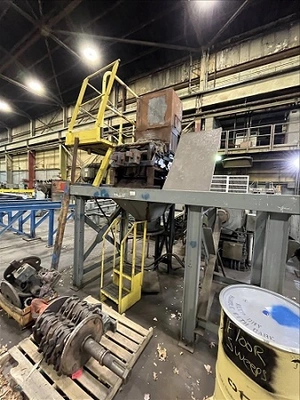

CHIP CONVEYOR

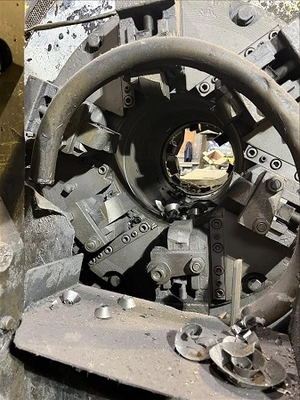

(3) SETS OF HEADS FOR DIFFERENT SIZES OF BAR

*CHIP CRUSHER NOT INCLUDED*

YEAR 1967
