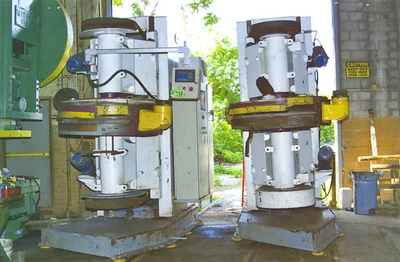

BESLY MODEL #926 TWIN HYD. VERTICAL SPRING GRINDER
Overview
Specs
SPECIFICATIONS:
ABRASIVE WHEEL ................ 53" DIA (4) x 1" THICK
DIAMETER AT WHEEL COLLAR ...... 18-1/2"
SPINDLE DIAMETER .............. 3.1496"
MAX. OPENING BETWEEN WHEELS ... 8"
TIE PLATE ..................... 50" x 57"
EQUIPPED WITH:
DUST GUARDS
ELECTRIC CONTROL PANEL
PENDENT CONTROL - WHEEL DRESSER

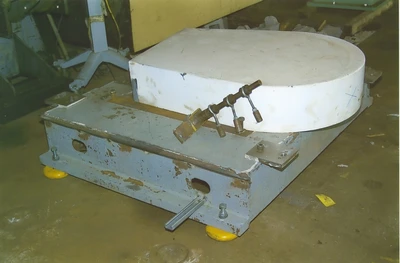

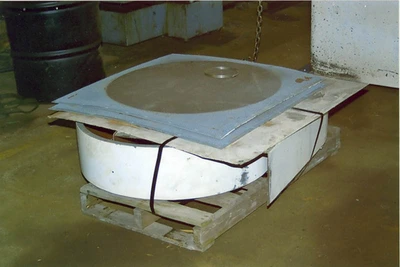

68" DIA CAROUSEL TABLE W/MOTOR
MOTOR DRIVE: (4) 25 HP, 220/440/60/3 MAIN MOTORS
1725 DRESSER MOTORS
(2) 1 HP
(4) 1 HP 220/440/60/3 WHEEL ADJ. MOTORS
OVERALL DIMENSIONS: 14" L x 23" W x 142" H
WEIGHT: 38,000 # TOTAL
