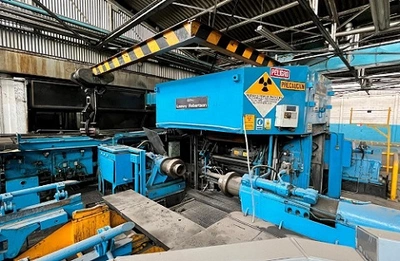

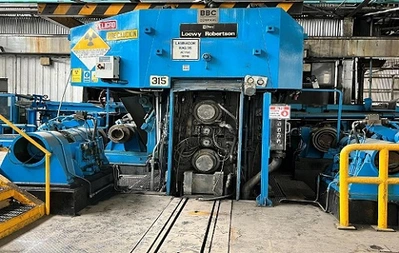

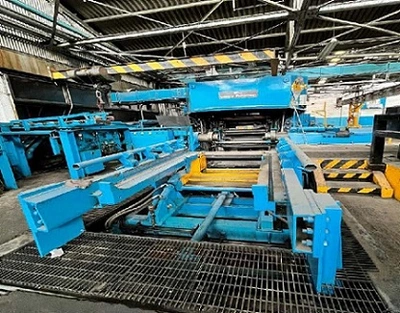

1100MM (43") X 0.089MM LOEWY ROBERTSON 4-HI ALUMINUM FOIL ROLLING MILL
Overview
Specs
1100MM (43") X 0.089MM LOEWY ROBERTSON 4-HI ALUMINUM FOIL ROLLING MILL
9" (228.6MM) X 22" (559MM) X 43.3" (1100MM)
MANUFACTURER: LOEWY
TECHNICAL SPECIFICATIONS:
WIDTH: 620MM - 1100MM
ENTRY THICKNESS: 0.5MM
EXIT MIN THICKNESS: 0.089 MM.
LINE SPEED: 1440 MPM MAX
MAX COIL WEIGHT: 5900 KGS
MILL DATA:
WORK ROLL FACE:1100 MM
WORK ROLL DIAMETER: 280MM
BACK UP ROLL DIAMETER: 559MM
2 X 260 KW MOTOR DRIVE
UNCOILER DATA:
COIL ID: 400/527/600MM
COIL OD: 1710MM
2 X 60 KW MOTOR DRIVE
RECOILER DATA:
COIL ID: 270/527 MM.
COIL OD: 1710 MM.
1 X 60 KW 1 X 75 KW MOTOR DRIVE
CONTROL SYSTEM KS2100 BY KVAERNER (NEEDS TO BE UPDATED)
THICKNESS MEASUREMENT (NEEDS TO BE UPDATED)
SHAPEMETER VIDIMON
COMPLETE ELECTRIC & HYDRAULICS, CONTROL (NEEDS TO BE UPDATED)
MORGOIL LUBRICATION SYSTEM (NEEDS TO BE UPDATED)
EDGE TRIMMER
AVAILABLE ROLLS & SPARE PARTS
STEEL CORES
SCHNEIDER FILTRATION SYSTEM
COOLANT SYSTEM
INSTALLED
