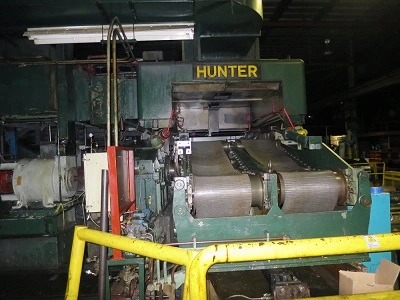

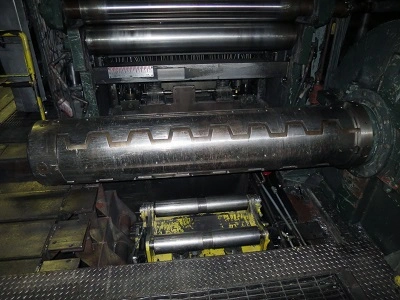

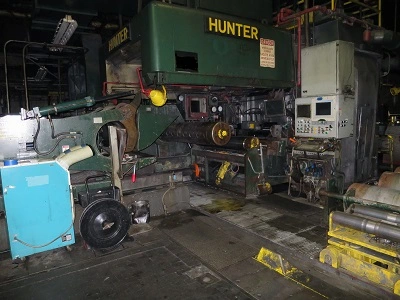

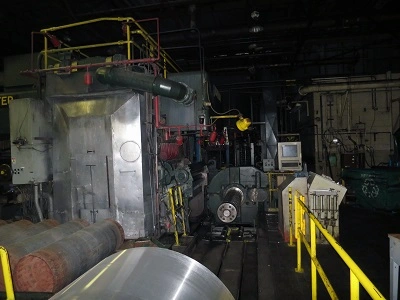

68" (1727MM) DANIELI-FATA HUNTER ALUMINUM COLD ROLLING MILL

GENERAL SPECIFICATIONS:

MANUFACTURER - HUNTER ENGINEERING

PRODUCT - ALUMINUM

GAUGE RANGE - .250" (6MM) - .006" (.15MM)

COIL WIDTH - 66" (1676MM) - 33" (838MM)

COIL DIAMETER - 55" (1,397MM) - 20" (508MM)

WORK ROLL DIAMETER - 15 _" (400MM)

WORK ROLL FACE - 80" (2032MM)

BACK-UP ROLL DIAMETER - 38" (965MM)

BACK-UP ROLL FACE - 74" (1879MM)

SCREWDOWN - ROLLER WEDGE TYPE

SCREWDOWN SPEED - " (6MM)/MINUTE @ 1800 RPM

MILL POST DIMENSIONS - 17" (431MM) X 21" (533MM)

MILL CONTROLS & OPERATORS CONTROLS - ALLEN BRADLEY

MILL ELECTRICS - EUROTHERM 590 LINK DC DRIVES

SHAPEMETER - REYCAN SHEETFORM 1700 W/ BRONER SHAPEMETER

MILL MOTORS:

MAIN MILL MOTOR - 1250 HP @ 400/1200 RPM

GEAR REDUCER & PINION STANDS - 1750 HP @ 400/1200 RPM

PAYOFF - (1) 100 HP @ 500/1600 RPM, (1) 200 HP @ 500/1600 RPM

REWIND - (1) 100 HP @ 500/1600 RPM, (1) 200 HP @ 500/1600 RPM

MILL SPEED:

0/150/451 FPM IN LOW GEAR RATIOS @ 0% REDUCTION

0/794/2383 FPM IN HIGH SPEED GEAT RATIOS @ 0% REDUCTION

0/157/474 FPM IN LOW SPEED GEAR RATIOS @ 5% EXTRUSION

0/794/2740 FPM IN HIGH SPEED GEAR RATIONS @ 5% EXTRUSION

MILL COMPONENTS

ENTRY INGROUND COIL CAR

240" HORIZONTAL TRAVEL

32" VERTICAL STROKE

MANDREL PAYOFF

18"-20 " ID X 76" FACE

ENTRY BRIDLE

10" X 72 " FACE

5 HP FEED ROLL MOTOR

5 BRIDLE ROLLS

STRIP GAUGE

MILL HOUSING

EXIT BREAKER ROLL

12 " X 73 " FACE

ROTARY EDGE TRIMMER

15 HP MOTOR, 400/2400 RPM

SCRAP CONVEYOR

MANDREL REWIND

18"-20" id X 76" FACE

BELT WRAPPER

EXIT INGROUND COIL CAR

156" HORIZONTAL TRAVEL

22" VERTICAL STROKE

MILL COOLANT SYSTEM

MILL HYDRAULIC SYSTEM

MILL EXHAUST SYSTEM

SPARE WORK ROLLS, BACK-UP ROLLS AND SPARE PARTS
