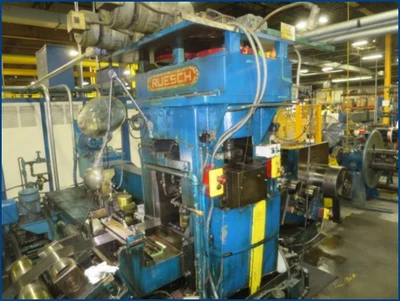

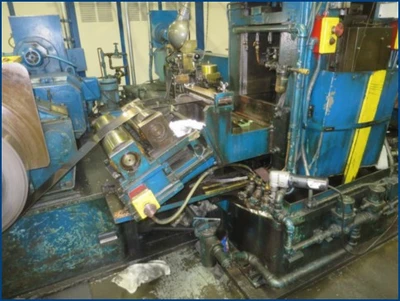

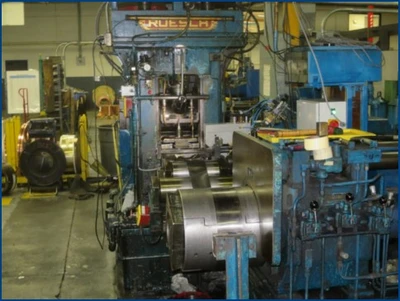

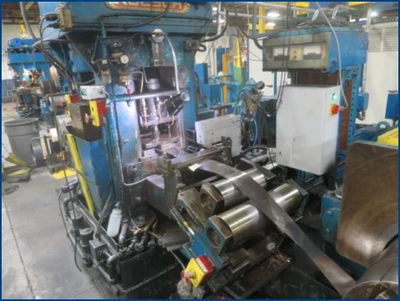

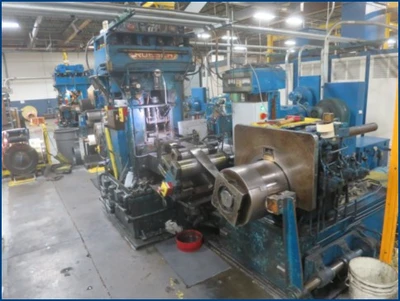

USED RUESCH N2421-B

MANUFACTURER - RUESCH

TYPE - 4HI REVERSING WORK ROLL DRIVEN

MODEL - N2421-B

SERIAL NUMBER - 5754

SCREWDOWN - MECHANICAL BY INDEPENDENT AC MOTORS

WIDTH RANGE - 2" - 8"

WORK ROLLS - 2.75" DIAMETER X 9.5" FACE APPROXIMATELY

BACK-UP ROLLS - 10" DIAMETER X 9.5" FACE APPROXIMATELY

THICKNESS GAUGES - (2) VOLLMER CONTACT GAUGES

MILL SPEED - 200 - 400 FPM

MILL MOTOR - 75 HP RELIANCE 850/1750 RPM 500 VDC WITH MOTOR MOUNTED AC BLOWER

& FILTER

MILL PINION STAND - HORSBURG & SCOTT RATED @ 98 HP @ 1 .0 SERVICE FACTOR RATIO

3.2 TO 1

MILL DEFLECTOR ROLLS - ENTRY/EXIT DEFLECTOR ROLLS ON EACH SIDE WITH FIXED WRAP

ANGLE AND LINE SPEED TACHOMETER

WINDER MOTORS - 25 HP 400/2000 RPM 500 VDC WITH MOTOR MOUNTED ON AC BLOWER &

FILTER

WINDER GEARBOXES - HORSBURG & SCOTT RATED @ 25 HP @ 400 RPM RATIO 21.1 TO 1

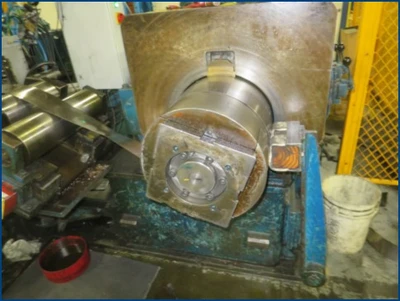

WINDER TYPE - HYDRAULCI COLLAPSIBLE BLOCK 16" DIAMETER

MAXIMUM TENSION - 2000 POUNDS @ 400 FPM AND 4000 POUNDS AT LOWEER 200 FPM MAX

SPEED

WINDER INCLUDES HYDRAULIC PUSHER PLATE & HYDRAULIC HOLD DOWN ROLL

PAYOFF - MANUAL EXPANSION WITH ADJUSTABLE AIR BRAKE FOR BACK TENSION

COOLANT SYSTEM - MILL MOUNTED AC MOTOR & PUMP WITH RESERVOIRS IN MILL BASE AND

WINDER BASES WITH 3 EXTERNAL CARTRIDGE FILTERS.

COOLANT APPLICATION - SPRAYED VIA MILL HEADER WITH NOZZLES DIRECTED AT ROLL

BITE AND BETWEEN THE WORK AND BACK ROLLS PINCH POINT

ELECTRICS - RELIANCE W/ PARKER DC MOTOR POWER MODULES

MILL OPERATORS DESK

SPARE ROLLS AVAILABLE
