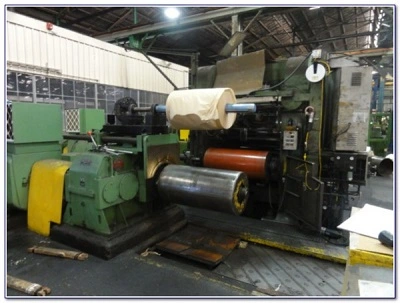

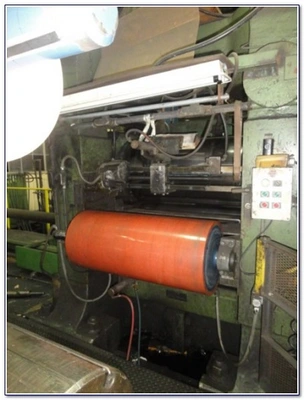

37" WATERBURY FARREL 2 HI SKIN PASS MILL

YEAR: 1969

SPECIFICATIONS

MILL SECTION: 2 HI

MILL TYPE: NON REVERSING

MATERIAL: STAINLESS STEEL, CARBON STEEL

STRIP WIDTH DATA

MAXIMUM: 37IN/939.802MM

MINIMUM: 14IN/355.601MM

ENTRY GAUGE MAXIMUM: 0.125IN/3.175MM

EXIT GAUGE MINIMUM: 0.008IN/0.203MM

MAXIMUM COIL SIZE (WINDER) O.D.: 48IN/1219.202MM

COIL SIZE (WINDER) I.D.: 20IN/508.001MM

MAXIMUM COIL WEIGHT:

ABSOLUTE COIL WEIGHT: 14,200LBS/6441.077747KG

MILL DATA/

MILL SPEED (MAX): 500FPM/152.40MPM

MILL SPEED (MIN): 250FPM/76.20MPM

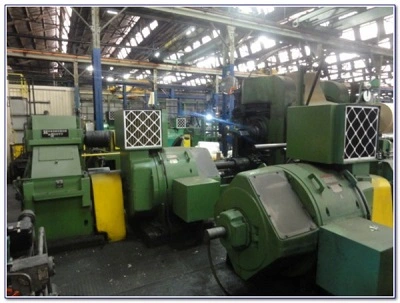

MILL POWER, MAIN MOTOR: 250HP/186.424968KW

650/1300 RPM, WATER COOLED, EDDY CURRENT CLUTCH

44O VOLT, 3PH, 60 CYC

PINION STAND RATIO16.8 : 12 SPEED

MILL ROLLS

WORK ROLL NOMINAL DIAMETER: 25IN/635.00127MM

BACK UP ROLL DIAMETER42IN/1066.802134MM

MILL BEARINGS , ROLLER TYPE/

WINDERS

WINDER POWER: 150HP/111.8549808KW

WATER COOLED, EDDY CURRENT CLUTCH

440 VOLT, 3 PH, 60 CYC

WINDER MANDREL:

DIAMETER: 20IN/508.001016MM

FACE: 42IN/1066.802134MM

MANDREL TYPE: EXPANDABLE, 19.687" CLOSED

WINDER TENSION:

MAXIMUM: 15,000LBS/6803.955366KG

INTERMEDIATE TO 650 FPM: LBS/0KG

MINIMUM: 9,900LBS/4490.610542KG

GEAR REDUCER RATIO15.22 : 1

PAYOFF

POWER: 3HP, AC/2.237099616KW

TENSION: 8,332LBS/3779.370407KG

SPEED: 500FPM

MANDREL DIAMETER: 17.5IN/444.5MM

NOMINAL: 21.521.5IN/546.1MM

(WITH FILLERS): 25.0IN/635.0MM

WATER COOLED BRAKE, MANUAL EDGE CONTROL

COOLANT -FILTER SYSTEM:

MILL DIRECTION: RIGHT TO LEFT

LINE CONFIGURATION

COIL CAR: FIXED, HYDRAULIC LIFT

PAYOFF REEL: PAPER WINDER

ENTRY BRIDGE TABLE: HYDRAULIC OPERATION

SENSING HEADS

DEFLECTOR ROLL:

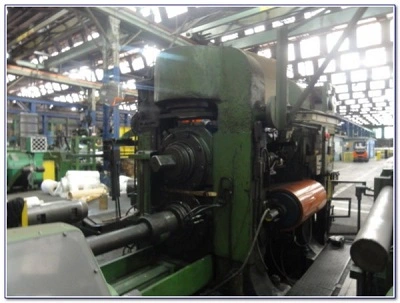

MAIN MILL FRAME: (2) 20" DIA HYDRAULIC CYLINDER LOAD/ADJUSTMENT

ROLL POLISHING TOP AND BOTTOM

ROLL CHANGE SLED

DEFLECTOR ROLLPIVOTING FOR LOAD CELL

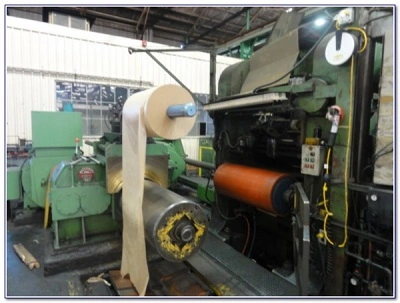

WINDER (LEFT):

COIL CAR: HYDRAULIC LIFT

PAPER WINDER

MOTOR DRIVE CONTROLS:

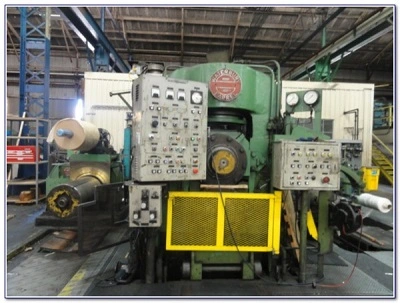

OPERATOR CONTROL CONSOLE

OVERALL FLOOR DIMENSIONS, (L-R / F-B): 26 FT X 33 FT

CLICK ON THE FOLLOWING LINK TO WATCH A VIDEO OF THE MACHINE

https://www.youtube.com/watch?v=Ss0ceKzuhKA
