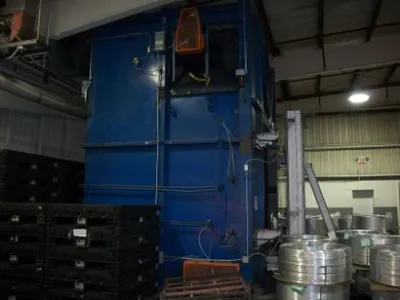

GASMAC CAR BOTTOM BATCH TYPE ANNEALING OVEN
Overview
Specs
SERIAL No. ................... JW020469
TYPE ......................... CAR BOTTOM BATCH TYPE
CAR CAPACITY ................. 7,200# APPROX
MAX OPPERATING TEMPERATURE ... 780 DEGREES FARENHEIT
No. RECIRCULATING FANS ....... 2
RECIRCULATION ................ 2 @ 36,500 CFM
No. OF BURNERS ............... TWO
No. OF HEATING ZONES ......... TWO
BURNER RATING ................ 1,250,000 BTU/HR
OVEN RATING .................. 2,500,000 BTU/HR
EXHAUST FAN .................. 2200 CFM
CAR SPEED .................... 30FT/MIN APPROX
FUEL ......................... 2500 CFH NATURAL GAS @ 20PSIG
COMPRESSED AIR ............... 90 PSIG
POWER ........................ 575V 3PH 60HZ
CONTROL ...................... 120V 1PH 60HZ
120" WIDE
1285" DEEP FRONT TO BACK
105" TALL
