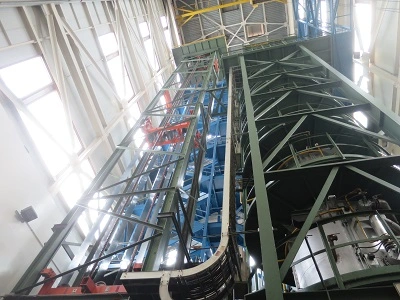

16" (406MM) EBNER VERTICAL BRIGHT ANNEALING FURNACE

Ebner Bright Anneal Furnace:

Manufacturer - Ebner

Model - B6V6 80/1350 Vertical Strip Annealer

Year - 1996

Type - Vertical Bright Anneal Strip Annealing line

Min/Max Width Capacity: 7.875" to 16" (200mm to 406mm)

Thickness Capacity: .004" to .060" (.102mm to 1.524mm)

Max thickness Capacity at 13" (330mm): 0.070" 1.778mm at 330mm)

Speed - 5 to 50 Meter/Min

Temp Deg. - 750c to 1170c

Hess Engineering Bridle Roll Assembly, S/N 1262

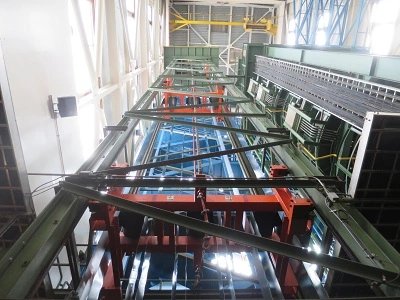

Carry over table to vertical entry and exit Accumulator

8 Steering rolls

Dancer rolls into Hess-Sundwig Coil Winder

20" (508mm) solid block x 18" (457mm) wide

Belt Wrapper with 40 HP DC Drive

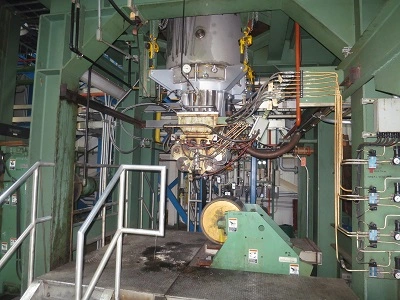

Ebner Furnace, Ebner Jet Cooler, Ebner Controls

Natural Gas Fired - 100% Hydrogen Atmosphere

Adco - 7-1/2 ton Bridge Crane

Nisterhammer Westerwald Alkaline Strip Cleaning Section:

Manufacturer - Nisterhammer Westerwald

Maximum Strip Width - 16" (406mm)

Thickness Capacity: .004" to .060" (.102mm to 1.524mm)

Min/Max Width Capacity: 7.875" to 16" (200mm to 406mm)

Speed - 5 to 50 Meter/Min

Hess Engineering Paper Winder S/N 1256

Hess Sundwig Uncoiler with 10 HP DC Drive

In Line Pinch Rolls

Jib Crane with 1/2 Ton Electric Hoist

In Line Spot Welder

8 Stand Brushing Unit with:

Pre-Cleaning, Post Cleaning, Rinse section and Forced Air Dryer, Pumps,

Controls, Filter and Operator Control Panel
