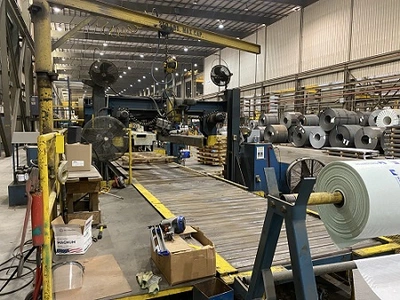

60" x 3/16" x 50,000# PRO-ECO CUT TO LENGTH LINE W/ CASSETTE LEVELER

60" x 3/16" x 50,000# PRO-ECO ROLL FEED CUT TO LENGTH LINE w/ CASSETTE LEVELER

GENERAL SPECIFICATIONS:

MANUFACTURER - PRO-ECO

YEAR - 1985, REINSTALLED 2002

WIDTH RANGE - 8" to 60"

GAUGE RANGE - .024" to .187"

WEIGHT CAPACITY - 50,000# (25 TON)

COIL OD - 36" to 72"

COIL ID - 19" to 24"

SHEET LENGTH - 24" to 168"

SHEET WIDTH - 8" to 62"

PACK HEIGHT - 30" (INCLUDING DUNNAGE)

PACK WEIGHT - 20,000#

LINE DIRECTION - RIGHT to LEFT

LINE SPEED - 50 to 300 FPM (VARIABLE)

LEVELER TYPE - MECHANICAL WEDGE STYLE w/ TWO CASSETTES

VIDEO OF THIS MACHINE CAN BE FOUND HERE

https://youtu.be/dAGKDEAgaaA

LINE COMPONENTS:

FOUR ARM ENTRY STORAGE TURNSTILE

FLOOR LEVEL COIL LOADING CAR

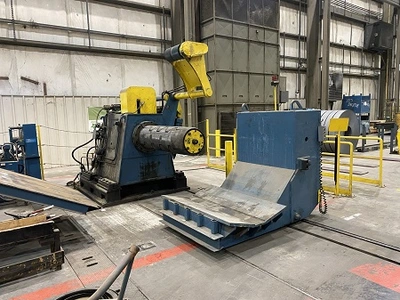

CANTILEVERED MANDREL UNCOILER w/ WATER COOLED BRAKE

PIVOTING AND TELESCOPING PEELER BLADE

ENTRY PINCH ROLLS

ROLLER TYPE SIDE GUIDES

ENTRY CROP SHEAR

SIDE TRIMMER HYDRAULIC SERVO DRIVE (CURRENTLY NOT OPERATIONAL)

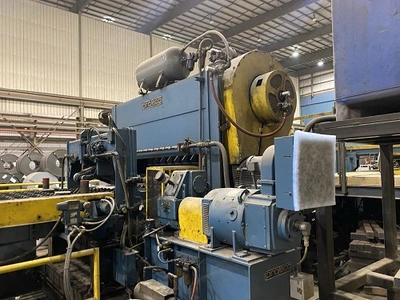

MECHANICAL STYLE LEVELER FRAME W/ 200 HP MOTOR

CASSETTE #1 - 19 ROLL, 2.50" DIAMETER, 5 HI, 7 BACKUP FLIGHTS

CASSETTE #2 - 19 ROLL, 1.75" DIAMETER, 5 HI, 7 BACKUP FLIGHTS

STRIP INSPECTION AND CARRY-OVER TABLE w/ NON-MARKING ROLLS

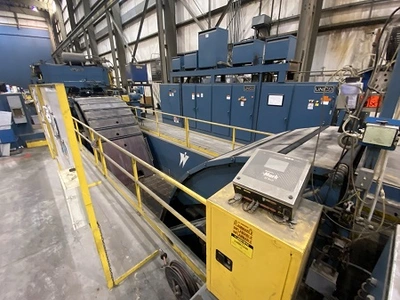

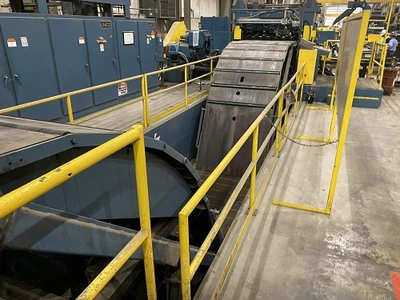

LOOPING PIT QUADRANT TABLES w/ NON-MARKING ROLLS

ROLLER TYPE STRIP SQUARING TABLE

PRECISION ROLL FEEDER W/ 55 HP MOTOR

HIGH SPEED MECHANICAL CUT OFF SHEAR W/ 40 HP MOTOR

BLANK INSPECTION CONVEYOR w/ NON-MARKING BELT

REJECT BELT CONVEYOR w/ NON-MARKING BELT AND SCRAP CART

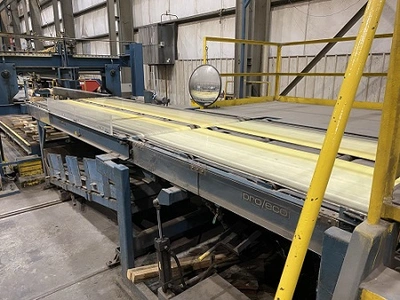

14 FOOT AIR FLOAT STACKER w/ SQUARING GUIDES AND END STOP

14 FOOT STACKER LIFT CONVEYOR w/ END DISCHARGE ROLLERS

14 FOOT STACKER RUNOUT CONVEYOR w/ END DISCHARGE ROLLERS

OPERATOR CONTROL STATIONS

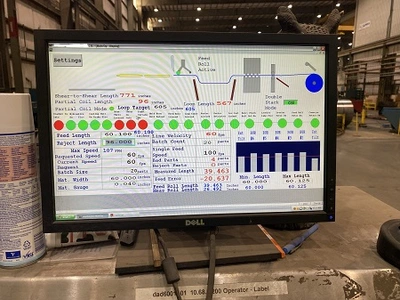

UPDATED AC CONTROLS w/ ALLEN BRADLEY "CONTROL LOGIX" PLC (2006)

UPDATED DRIVE CONTROLS w/ SIEMENS "SIMOREG" CONTROLLERS (2006)

CLOSED LOOP HYDRAULIC SYSTEM

CLOSED LOOP WATER COOLING SYSTEM
