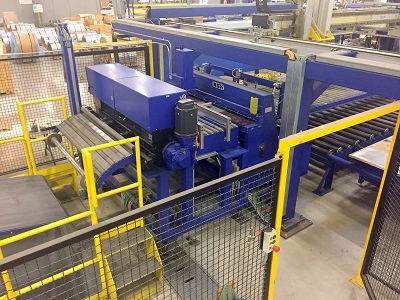

USED 2007 DREHER HSK/W

Manufacturer - Dreher

Year - 2007

Strip width - 8"-60" (200mm-1525mm)

Coil capacity - 30,000# (15 ton)

Strip thickness - .015"-.078" (.4mm-2.00mm)

Flattener - 9 Rolls w/ 2 pinch rolls (11 total rolls)

Shear SPM - 100

Max Stacker Weight - 8,800 Lbs (4000 Kg)

Voltage - 480 V, 60 Hz, 3 Ph

Line Direction - Right to Left

Line Components:

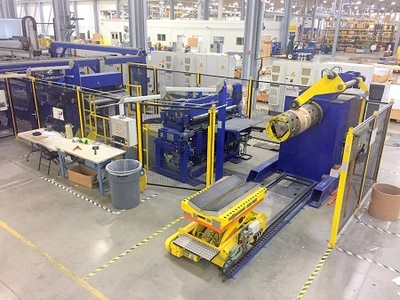

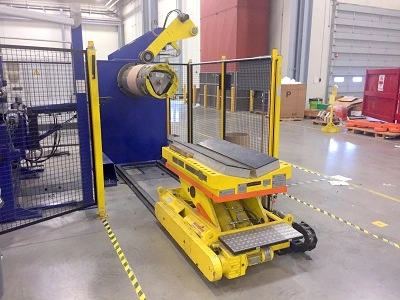

Scissor Type Traversing Coil Car

Capacity - 15 Ton

Stroke - 27.5" (700mm)

Travel - 117" Approx (3000mm Approx.)

Coil OD Range - 27.5"-70" (700mm-1800mm)

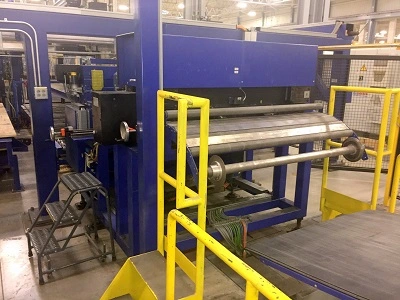

Mandrel Uncoiler Hydraulic Expansion & Hold Down Roll

Capacity - 15 ton

Strip width - 60" (1500mm)

Coil ID Range - 17.5"-23" (450mm-590mm)

Coil OD Range - 70" (1800mm)

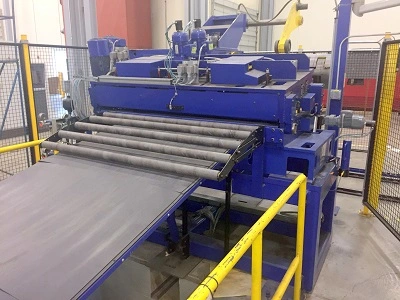

9 Roll Flattener w/ 2 Entry Pinch Rolls

Strip Width - 8"-60" (200mm-1525mm)

Thickness Range - 0.4mm-2.0mm (.015"-.078")

Roll Diameter - 1.965" (50mm)

Pinch Roll Diameter - 3.14" (80mm)

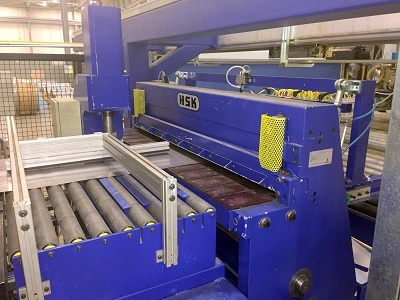

Huttenlocher & Schafer Shear

Model - HSK/W

Machine Number - 3409

Max Cutting Width - 60" (1530mm)

Max Cutting Thickness - .058" (1.5mm)

SPM - 100

Electrics and Controls - 2007 Siemens
