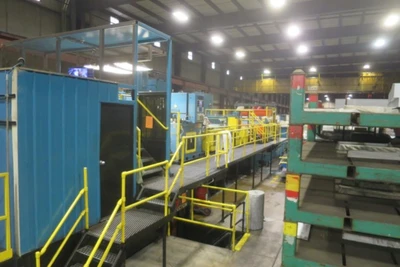

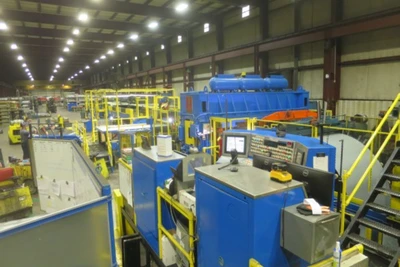

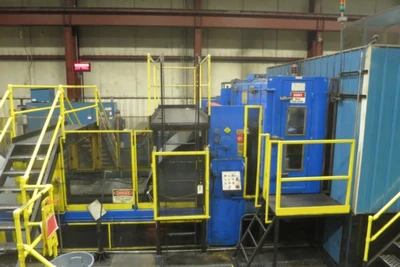

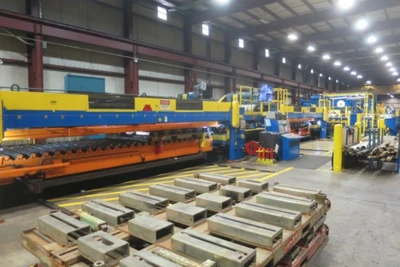

76" x .100" x 72K AUTOMATIC FEED TRAPEZOID CUT-TO-LENGTH LINE - UPGRADE 2020

LINE OVERVIEW:

THIS IS AUTOMATIC FEED COMPANY TRAPEZOID CUT TO LENGTH LINE HAD A MULTIMILLION

DOLLAR CONTROLS, MOTOR AND STACKER UPGRADE IN 2020 BY AUTOMATIC FEED COMPANY

THE LINE IS RUNNING AND IN OPERATION IN USA PLANT.

GENERAL LINE SPECIFICATIONS:

MANUFACTURER - AUTOMATIC FEED COMPANY

YEAR - 1989 (NEW CONTROLS UPGRADE 2020)

TYPE - TRAPEZOID CUT TO LENGTH LINE

MATERIAL - 0.020" - 0.100"

YIELD STRENGTH - 25,000 PSI - 40,000 PSI

DEPENDING ON WIDTH & THICKNESS A HIGHER YIELD STRENGTH IS FEASIBLE. CONTACT

OUR OFFICE FOR FURTHER INFORMATION

WIDTH RANGE - 24" - 76"

TRIM WIDTH - 74"

ID RANGE - 19" - 25"

OD RANGE - 36" - 84"

LINE SPEED - 300 FPM

SHEAR SPM - 18 - 70

SHEAR ANGLE CUTS - 30 DEGREES MAXIMUM +/-

SHEAR STROKE - 6"

SHEAR SHUT HEIGHT - 30"

STACKER WIDTH RANGE - 24" - 74"

STACKER LENGTH RANGE - 24" - 168"

MAXIMUM STACK WEIGHT - 20,000#

MAXIMUM LIFT & TRANSPORT WEIGHT - 40,000#

MAXIMUM STACK HEIGHT - 24" (INCLUDING DUNNAGE)

LINE DIRECTION - RIGHT TO LEFT

GENERAL LINE COMPONENTS:

(4) STATION TRAVELING COIL STORAGE RACK

V-TYPE TRAVELING COIL CAR W/ HYDRAULIC LIFT

ANTI-TIP GUIDES

DUAL STUB MANDREL EXPANDING UNCOILER

AC MOTOR - 125 HP, 1750 RPM & SERIES 2400 MODULAR FLUX VECTOR AC INVERTER

HOLDDOWN ROLL & PEELER ASSEMBLY

PINCH ROLL AND ENTRY CROP SHEAR ASSEMBLY W/ SCRAP CONVEYOR

EDGE TRIMMING UNIT

BUTECH MDL. SC-250 SCRAP CHOPPERS

(4) AC MOTORS - 30 HP, 1750 RPM & (3) SERIES 2400 MODULAR FLUX VECTOR AC

INVERTERS

(FOR THE PINCH ROLL, SCRAP CHOPPER, ENTRY PINCH ROLL, AND EXIT PINCH ROLL)

WASHING & RINSE UNIT WITH HIGH PRESSURE PUMP & FILTER SYSTEM

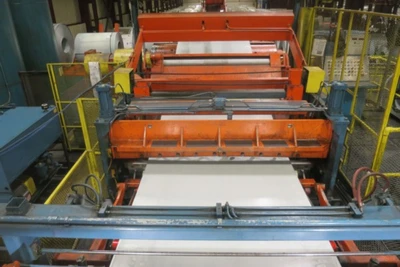

19 ROLL 5HI PRECISION LEVELER

1.9375" ROLL DIAMETER

76" WIDTH

AC MOTOR - 250 HP, 1150 RPM & SERIES 2400 MODULAR FLUX VECTOR AC INVERTER

LOOPING PIT #1 & INSPECTION TABLE

ECT STRIP OILER

PINCH ROLL ASSEMBLY

LOOPING PIT #2

THREADING TABLE

DIGITAL CONTROLLED ROLL FEED

AC MOTOR - 100 HP, 1000 RPM & SERIES 2400 MODULAR FLUX VECTOR AC INVERTER

UPCUT SHEAR

AC MOTOR - 30 HP, 0-1750 RPM

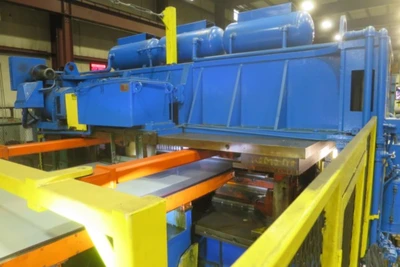

OSCILLATING/TRAPEZOID SHEAR ASSMEBLY

DIES STYLE - CASSSETE TYPE - MULTIPLE DIES AVAILABLE

AC MOTOR - 75 HP, 1150 RPM & SERIES 2400 MODULAR FLUX VECTOR AC INVERTER

BELT RUNOUT CONVEYOR

AC MOTOR - 30 HP, 1750 RPM & SERIES 2400 MODULAR FLUX VECTOR AC INVERTER FOR

EACH STACKER

MAGNETIC BELT CONVEYOR & TWO STATION MAGNETIC STACKER

AC MOTOR - 30 HP, 1750 RPM & SERIES 2400 MODULAR FLUX VECTOR AC INVERTER FOR

EACH STACKER

NEW MAGNET SYSTEM INSTALLED IN 2020 WITH FUTURE AREAS FOR VACCUUM CHAMBERS

REJECT PILER

LEFT AND RIGHT DISCHARGE TRANSFER CONVEYOR

AC MOTOR - 15 HP, 1750 RPM & SERIES 2400 MODULAR FLUX VECTOR AC INVERTER

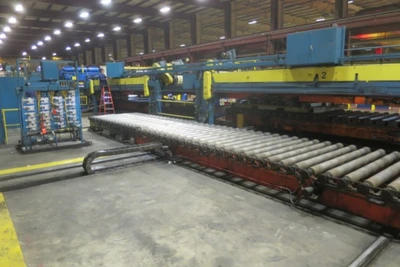

100' + RUNOUT OUT CONVEYOR ON RIGHTHAND (R-L DIRECTION) OF STACKER WITH SCALES

EXTENSIVE ELECTRICAL AND CONTROLS UPGRADE IN 2020 INCLUDING:

NEW ALLEN BRADLEY PLC UPGRADE FOR LINE AND STACKER WITH CONTROLOGIX WITH

GUARDLOGIX PROCESSORS & DYNICS TOUCHSCREENS

NEW COIL LINE & STACKER ADJUSTMENT FEEDBACK DEVICES

AUTOMATIC FEED COMPANY'S AUTOMATION INTEGRATION MANAGER (AIM) VISUAL BASIC

OPERATOR INTERFACE

NEW SAFETY DEVICES ON COIL LINE AND STACKER

108 NEW MAGNET ASSEMBLIES FOR THE STACKER AND ALLOW ROOM FOR VACCUUM CHAMBERS

IN THE FUTURE

UNICO AC SERVER DRIVES INTEGRATED TRHOUGHOUT THE LINE

UNICO SERIES 4000 SERVO DRIVE CONTROLLERS THROUGHOUT THE LINE

PROVIDE AUTOTHREAD CAPABILITY STARTING AFTER THE CROP SHEAR
