USED DAHLSTROM 1HS

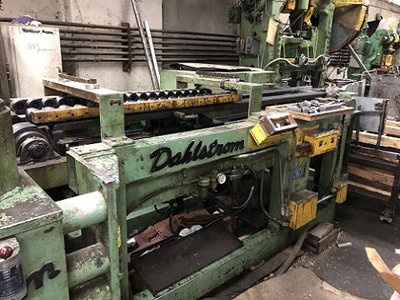

24" x 0.062" DAHLSTROM CUT TO LENGTH LINE

MANUFACTURER - DAHLSTROM

LINE DIRECTION - LEFT TO RIGHT

MAX COIL WIDTH - 24"

THICKNESS RANGE - 0.026" - 0.062"

MAX COIL WEIGHT - 5,000 LBS.

SPEED - 20 - 60 FPM

LINE CONFIGURATION

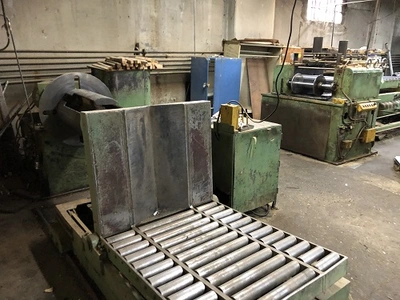

COIL CAR / UPENDER

RECEIVING ROLLER TABLE DIMENSIONS.....38" W X 46" DEPTH

PLATFORM DIMENSIONS...............38" WIDTH X 32" DEPTH

HYDRAULIC OPERATION.............TILT AND TRAVEL

HYDRAULIC MOTOR PUMP RESEVOIR

CURRENT CONFIGURATION FEEDING UNCOILER FROM SIDE

DAHLSTROM UNCOILER

MODEL 5A-24-1620

COIL WEIGHT MAX..................5000 LBS.

ID/OD COIL DIMENSIONS..................16"-20" ID / 48" OD

MANDREL LENGTH..................29"

AIR EXPANSION, AIR BRAKE

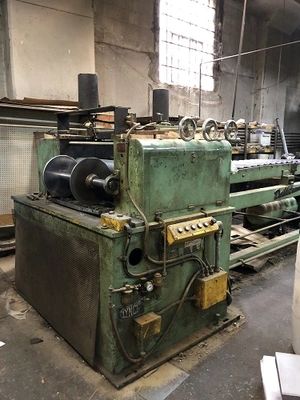

DAHLSTROM COILSTRAIGHTENER

MODEL 24-16-10

CAPACITY.....................0.026" TO 0.062"

ROLL DIAMETER..................3"

ROLL SPACE....................24"

SPEED.......................20 TO 60 FPM

SERIAL #......................S-360

DAHLSTROM HUMP TABLE

MODEL HT-13

SERIAL #......................H-127

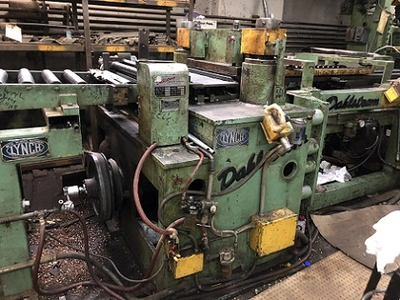

DAHLSTROM HIGH SPEED SHEAR

MODEL..............1HS

STROKE......................5/8"

FLYWHEEL RPM...................570

MOTOR HP.....................3

SERIAL # ......................SH-131

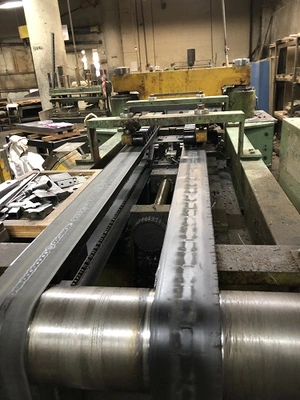

STACKER & RUNOUT OUT TABLE

MODEL 4SPS

MATERIAL LENGTH.................9"- 48"

MATERIAL WIDTH..................9" - 24"

SPEED........................35 TO 105 FPM

SERIAL #.......................M-333

MOTOR & CONTROLS
