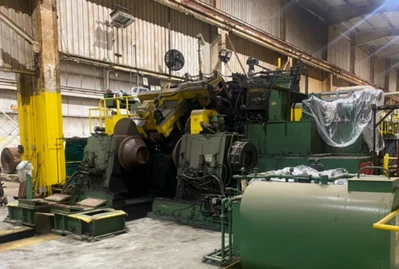

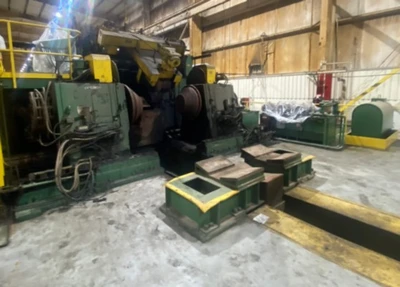

72" x .500" x 69,000# PRO-ECO PIT TYPE COIL CAR & DUAL CONE UNCOILER

Manufacturer: Pro-Eco

Line Direction: Right to Left

Uncoiler Feed-Up Drives: Hydraulic Gearmotors with Water Cooled Brakes

Materials: Cold Rolled & Hot Rolled Steel (Pickled or Black)

Coil Width: 72" (1829 mm) Max.

Strip Thickness: .500" (12.70 mm) Max., .054" (1.37 mm) Min.

Coil Weight: 69,000# (31,298 Kg) Max.

Coil OD: 80" (2,032 mm) Max.

Coil ID: 19" (483 mm) to 33" (838 mm)

ITEM 1) PRO-ECO PIT TYPE COIL LOADING CAR

The coil car removes coils from storage saddles and loads them onto an

uncoiler

"V" shaped saddle is elevated by hydraulic cylinder and supports the coil from

the outside diameter

Saddle is mounted on a traversing cart with flanged wheels driven by hydraulic

gearmotor

ITEM 2) PRO-ECO DUAL CONE UNCOILER WITH WATER COOLED BRAKES

The uncoiler grips, feeds, and maintains back tension on a coil in process

Dual housings with steel cones keyed to main shafts riding in precision

bearings

Housings are positioned by hydraulic cylinders on welded steel sub-bases

Water-cooled brakes are back driven by the main shafts to maintain tension

Hydraulic gearmotors drive the cones during feed-up
