.250" (6mm) Diameter Mill Masters Precision Small Diameter Tube Mill (2004)

Manufacturer: Mill Masters

Type: Tig Mill

Manufactured: 2004

Mill Speed: 12 to 14 FPM

Mother Tube Forming : .300"

Finish Tube: .250"

Material: 316 Stainless / 825 Incoloy

Wall Thickness: .028" to .035" (Tooling for .049")

Shaft Diameter: 1 1/4"

Direction: Left to Right

Application:

Copper & plastic cable is intertwined with Stainless or Incoloy strip and

formed directly in tube mill making finished traverse wound encased cable

tubing.

Complete Mill with the Following Components:

2500# x 60 OD x 18" W Double End COE Industries Uncoiler

Mdl. CPR-DE-PO-2518

Kent Shear and End Welder

Kent Mdl. Mdl. 10065PMAHSC

Lincoln Electric Square Wave Tig 175 Pro Welder

Free Band Accumulator w/ Entry Power Pinch Roll

Hall Industries Core Capstan Payoff for Insulated Copper Cables

Wire Dancer, Feeder and 2-Plane Straightener Feeding directly into Forming

Section of Mill

Strip/Cable Combine Station (Intersection Flat Strip with Insulated Cable)

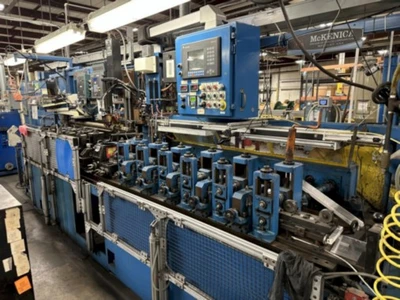

Forming Mill

3 Forming Stands

3 Fin Stands

5 Idle Side Roll Passers

20 HP, 1760 RPM SEW-Eurodrive AC Motor Drive

230/460 Volt

Universally Driven

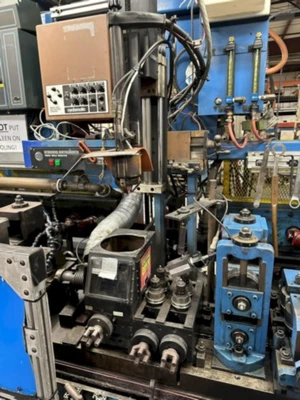

Welding Section

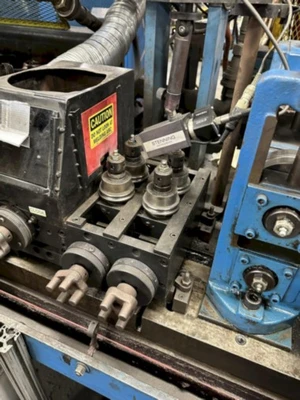

4 Roll Cluster

2 Roll Weld Rolls

Jet Line TIG Welding System with Miller Welding Supply & Miller Coolmate 4

water coolant unit

Welder Camera System

Cyclomatic 90A Arc Pattern Control

Jetline Series 9500 Controller

5 Sizing Reduction Stands

5 Idle Side Rolls

20HP, 1760 RPM SEW-Eurodrive AC Motor Drive

230/406 Volt

Universally Driven

Pruftechnik AG Eddy Current Eddychek S Tester

Mdl. Lab 3952UM 9

Roller Weld Bead Planisher / Conditioner

(2) Beta Lasermike Measuring Unit

Camam Tube Polisher W/ Tiger Vac Collection System

MGS / Hall Industries Traversing Spooler

50" x 32" x 32"

50,000 Feet Capacity

Includes Controls, Hydraulics, Electrics - Allen Bradley Powerflex 700 Drives

Allen Bradley Panelview 1000 Mill Controls Display

Installed
