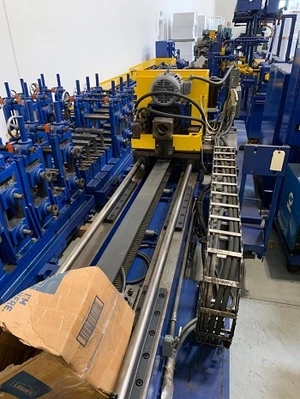

3.5" x 0.125" ABBEY ETNA STAINLESS LASER RAFTED TUBE MILL

Manufacturer: Abbey Etna

Double Wall and Single Wall Design Capacity

Year: 1999

Mechanically Rebuilt: 2016

General Specifications:

Max. OD: 3.5"

Min OD: 1"

Max Wall: .125"

Min Wall: .025"

Forming Roll Space: 13"

Fin and Sizing Roll Space: 5"

Spindle Diameter: 2.5"

Root Diameter (Forming, Fin and Sizing): 5"

Welding Capacity: 5KW Laser

Max Mill Speed: 50FPM

Min Mill Speed: 10FPM

Mill Direction: Left to Right

Power Supply: 480V/3 Phase/60HZ

Materials and Products.

Single Wall Product Specifications:

3.5" OD x .125" ............ Cold Rolled Steel - Stainless Steel

3.5" OD x .060" ............ Aluminized Cold Rolled - 409 Stainless Steel- 439

Stainless Steel- 430 Stainless Steel

3.5" OD x .047"............. Aluminized Cold Rolled - 409 Stainless Steel- 439

Stainless Steel- 430 Stainless Steel

Double Wall Product Specifications:

2.5" OD x .058"/.036".......... 409 SS/CRS

2.5" OD x .043"/.036"...........409 SS/CRS

2.25" OD x .058" / .035" .........409 SS/CRS

2.25" OD x .055" / .036".......... Aluminum, Ti, Coated/CRS

2.25" OD x .036" / .034"........... 409 SS / CRS

2" OD x .037" / .032"............... 409 SS/CRS

Accuracy Requirements:

Tube OD Tolerance: +/- 0.010" (0.25mm)

Tube ID Tolerance: +/- 0.010" (0.25mm) - 0.03125" (0.79mm)

Cut Lenght Tolerance: +/- 0.039" (1mm)

Straight Tolerance: +/- 0.039" / 39.370" (1mm/1M)

Mill Components:

Littel Double End Uncoiler

Coil OD: 72"

Coil ID: 16" to 20"

Coil Weight: 6,000lbs

Kent Corp. Semi-Automatic Shear End Welder

Lilcoln Econo Twin HF Welder

Entry Pass Line Rolls

Entry 4 Double Sided Adjustable Edge Guides

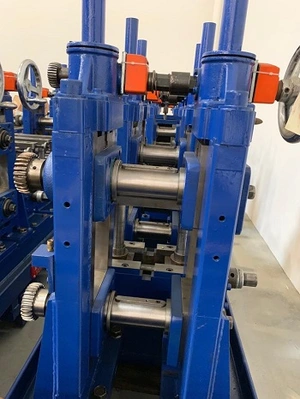

3 Forming Stands

Single Point Adjustments

Spindle Diameter: 2.5"

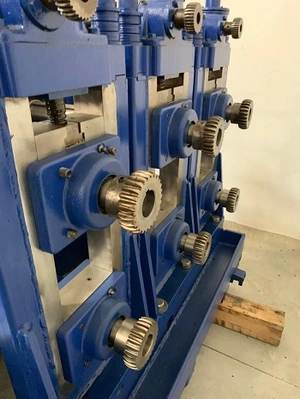

Universal Shaft Transmission

2 Side Idle Rolls

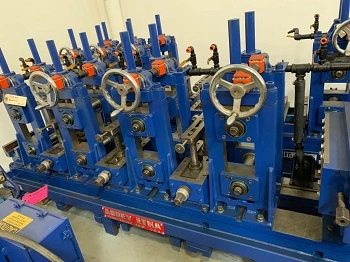

*Rafted 3 Forming Stands

Forming Hydraulic Transfer Rafted Base

Centralized Gear Box Lubrication System (On All Gearboxes)

3 Side Idle Stands

2 Fin Stands

Single Point Adjustments

Spindle Diameter: 2.5"

Universal Shaft Transmission

2 Side Idle Rolls

*Rafted 2 FinStands

20HP Relliance DC Motor Drive for Forming and Sizing

Spline "Quick Change" Design on all Rafted Stands Couplings

Fin Hydraulic Transfer Rafted Base

Centralized Gear Box Lubrication System (On All Gearboxes)

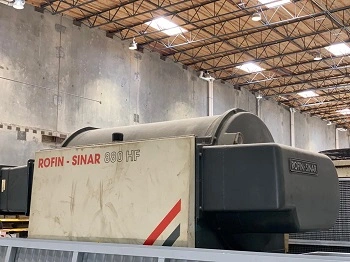

Rofin Sinar 880HF Laser Welder

Koolant Koolers Chiller

4 Sizing Stands

Single Point Adjustments

Spindle Diameter: 2.5"

Universal Shaft Transmission

2 Side Idle Rolls

*Rafted 4 Sizing Stands

Sizing Hydraulic Transfer Rafted Base

Centralized Gear Box Lubrication System (On All Gearboxes)

20 HP Relliance DC Motor Drive

Rotary Flying Cut Off

Max Cut Lenght: 20FT

Min Cut Lenght: 2FT

Run Out Table

Hoffman Emulsion Coolant Filtration System

Model VAC F-80

PABCO Main Hydraulic Unit

5 Sets of Rolls:

-1.125" Diameter

-1.75" Diameter

-2" Diameter

-2.5" Diameter

-3.5" Diameter

Spare Parts for Mill, Welder and Misc Components

NO Controls or Electronics Included
