USED 2009 TUREK & HELLER WU-11-9

3/4" x 0.012" TUREK & HELLER WU-11-9 PRECISION STAINLESS STEEL TUBE MILL, NEW

2009

MANUFACTURER - TUREK & HELLER

MODEL - WU-11-9

TYPE - PRECISION SMALL DIAMETER TUBE MILL

WELDER - SINGLE TORCH TIG TYPE

MATERIAL - STAINLESS STEEL

YEAR - 2009

MAXIMUM DIAMETER - 0.750"

CURRENTLY TOOLED FOR - 0.312"

WALL THICKNESS RANGE - 0.012"

MILL DIRECTION - RIGHT TO LEFT

LINE COMPONENTS:

TUREK & HELLER DOUBLE END POWERED UNCOILER

WEIGHT PER SIDE - 1500 LBS

MAXIMUM WIDTH - 12"

MAXIMUM OD - 54"

ID RANGE - 14" - 20"

EXPANSION TYPE - MANUAL

SEGMENTS - 3

UNLOADING METHOD - CRANE

INCLUDES: COIL DEPLETION SENSOR & PNEUMATIC DRAG BRAKES

TUREK & HELLER SHEAR & END WELDER

STRIP WIDTH - 1"

GAUGE RANGE - 0.012"

SHEAR STRENGTH - 65,000 PSI

POWER SUPPLY - 110 V, 20 AMP

TYPE - TIG

WELD POWER SUPPLY - 225 AMP AC/DC POWERR SOURCE

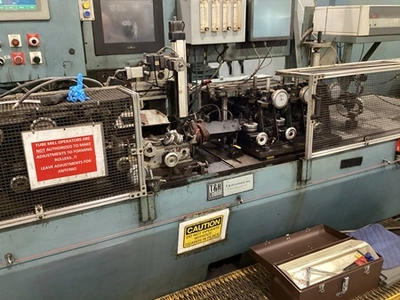

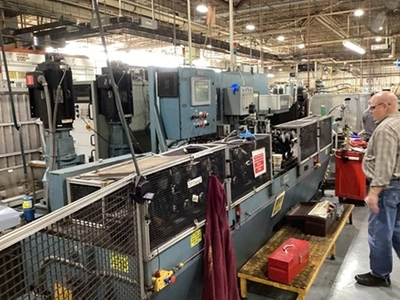

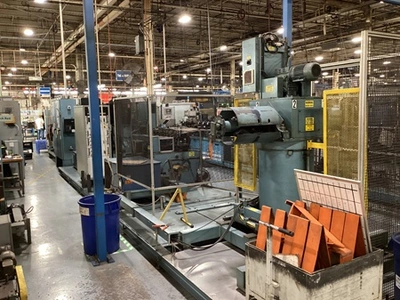

TUREK & HELLER WU11-9 TUBE MILL SYSTEM

MILL CONFIGURATION - (4) BREAKDOWN/FORMING STANDS, (3)FINISH STANDS, (3)

SIZING STANDS

MAX TUBE DIAMETER - 0.750"

CURRENTLY TOOLED FOR - 0.312"

MAX WALL THICKNESS - 0.012"

DRIVEN SHAFT DIAMETER - 1.125"

BREAKDOWN SECTION ROLL SPACE - 3"

FIN SECTION ROLL SPACE - 3"

SIZING SECTION ROLL SPACE - 3"

NOMINAL ROLL ROOT DIAMETER - 2.5"

PASSLINE HEIGHT FROM FLOOR TO BOTTOM LINE OF TUBE MILL - 43"

MILL SPEED - 0-60/FPM

VOLTAGE - 480 V, 3 PH

MOTORS - (3) 10 HP AC MOTORS (BREAKDOWN, FINISH, SIZING)

FOUR BREAKDOWN STANDS

SIDE HORIZONTAL PASS BETWEEN - 2, 3,4

THREE FINSHING STANDS

SIDE HORIZONTAL PASS BETWEEN - 5,6,7 (FRONT/BACK)

2 ROLL WELD BOX

ENTRY HORIZONTAL SIDE PASS

MILLER WP27 SINGLE TIG TORCH UNIT W/ HF AND 5000 HZ AMP PULSING

WATER COOL DOWN SECTION

WELD INSPECTION

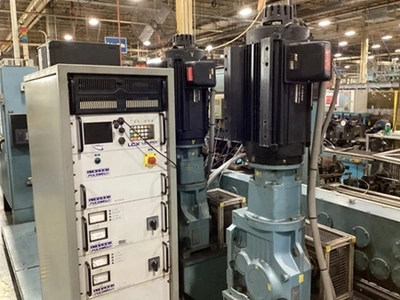

LIBURDI LCX PULSWELD

200 AMP POWER SOURCE & WELDING SYSTEM

THREE SIZING STANDS

SIDE HORIZONTAL PASS BETWEEN - EACH STAND

FULL BODY INSPECTION

BETA LASERMIKE

TECHNISALES ACCU-CUT FLYING DOUBLE CUT TUBE CUTOFF

TUBE CUTOFF DIAMETER RANGE - 0.236" - 1"

WALL THICKNESS RANGE - 0.012" - 0.030"

MATERIAL - STAINLESS STEEL TUBE

SPEED - UP TO 60 FPM

CUT LENGTHS RANGE - 18" - 20'

CUT LENGTH TOLERANCE - 0.020" +/-

TUBE ENDS TO BE SQUARE WITHIN - 0.008"

CLOSED LOOP LENGTH CONTROL

RUNOUT TABLE

ALLEN BRADLEY POWERFLEX VARIABLE FREQUENCY DRIVES

MILL CONTROLS, HYRDAULIC SYSTEM, COOLANT SYSTEM, & ELECTRICS
