Kieserling Solingen Straightening Machine for Conical Bars No. 92

Machine: Straightening machine (smoothing roller) for continuous bars

Manufacturer: Kieserling Solingen

Modernized: No

Power grid: 500V,50Hz, IT grid

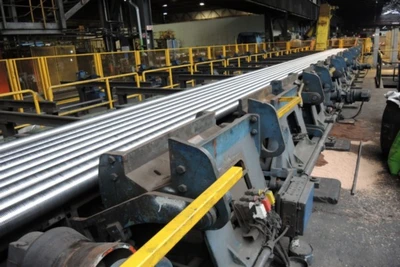

Workpiece

Conti rods of 26 meters

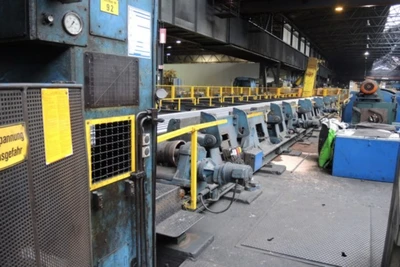

Data feed device:

Diameter: 60-160 mm

Max. rod length: 26,500 mm

Max. bar weight: 4,180 kg

Feed speed: 0.05-2.0m/min.

Roll diameter: 160 mm

Drive torque: 320 Nm

Max. setting force: 2.5 tons.

Oil quantity: 20 L / min. / 80 bar

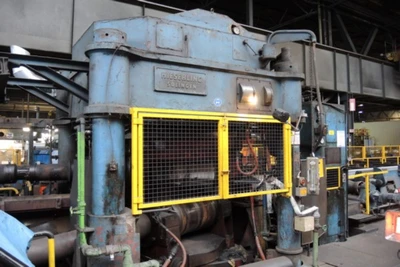

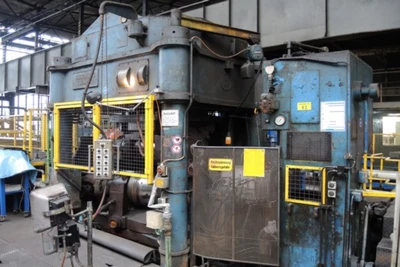

Data leveler (smooth roller):

Cold straightening working range: 80-133 mm diameter

Hot smoothing working range: 80-125 mm diameter

Pole length: 12-20 meters

Smoothing speed: 0.5-13.5 m/min.

DC drive power: 8.5-75 KW at 200-1800 rpm.

Power adjustment motor: 4 KW / 1500 rpm.

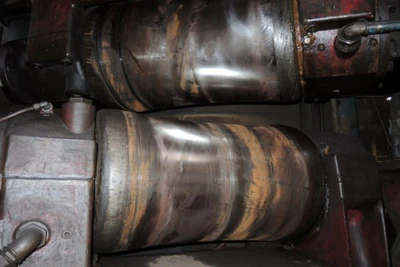

Roller diameter: about 550 mm

Effective roller length: 750 mm
