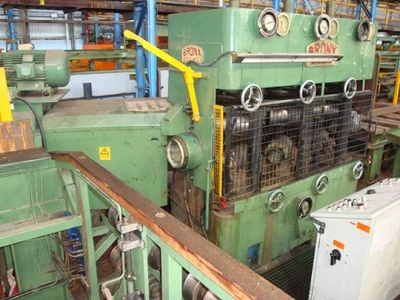

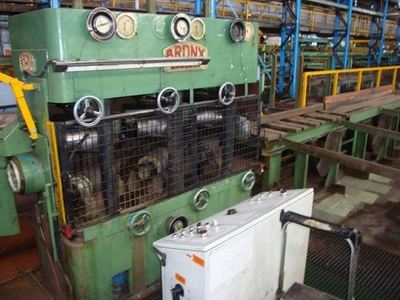

BRONX 6CR7 6 ROLL ROTARY TUBE STRAIGHTENER

MANUFACTURER: BRONX ENGINEERING CO. (U.K.) LTD.

TYPE: 6 ROLL ROTARY TUBE STRAIGHTENER

MODEL No.: MODEL 6CR7-BWS

DIRECTION: LEFT TO RIGHT WITH LOADING AND DISCHARGE TABLES

CAPACITY (COPPER & BRASS):

MAXIMUM TUBE DIAMETER PER MANUFACTURER'S SPECS: 7" (178mm)

MAXIMUM TUBE DIAMETER AS USED: 8" (203mm)

MINIMUM DIAMETER SOFT. Cu.: 3/4" (19mm)

MINIMUM DIAMETER HALF HARD: 1 3/8" (35mm)

MAXIMUM TUBE LENGTH: 20 FT. (6.1m)

- DETERMINED BY TABLE LENGTH

- CAN BE EASILY LENGTHENED

STRAIGHTENING SPEED: 0-50 FPM (0-15m/min.)

ROLL TYPE: PARABOLIC (CONCAVE)

CENTER DIAMETER: 9" (228mm)

END DIAMETER: 10" (254mm)

ROLL FACE: 14" (355mm)

No. OF ROLLS: 6 (ALL DRIVEN)

MOTORS:

QUANTITY: 2

EACH MOTOR DRIVES 3 ROLLS

SIZE: 12 HP, 720 RPM, 415 VOLT, 3 PH., 50 HZ

DRIVE: RELIANCE MINITRON S-2 SERIES, SCR THYRISTOR VARIABLE SPEED

PARAFIN FEED: MOTORIZED

ROLL ADJUSTMENT: MANUAL

PRESSURE INDICATORS: STATIMETERS FITTED TO THREE TOP ROLLS

LUBRICATION: GREASE

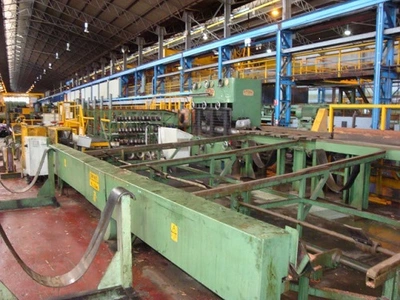

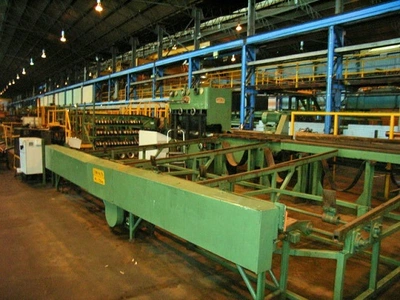

ENTRY AND EXIT TABLES: 20 FT. (6.1m) INCLUDED

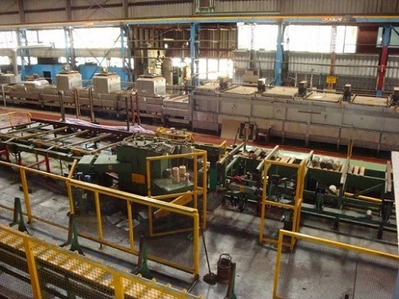

NOTE: ENTRY AND EXIT STORAGE RACKS AND INCISOR SHOWN IN PHOTOS ARE NOT

INCLUDED

**PRICE QUOTED AS IS WHERE IS SUBJECT TO PRIOR SALE**

**ALL SPECIFICATIONS ARE SUBJECT TO VERIFICATION BY PURCHASER**
