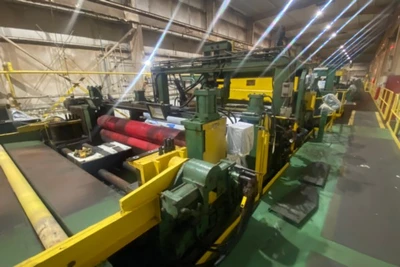

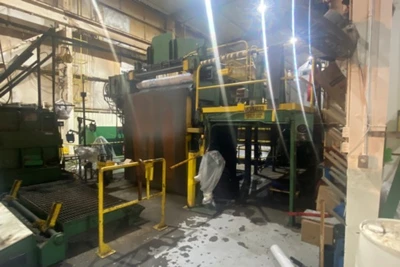

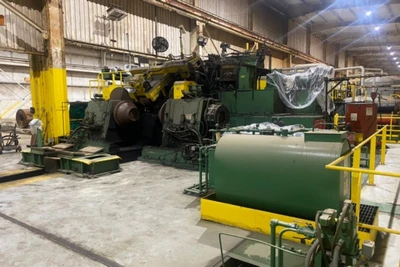

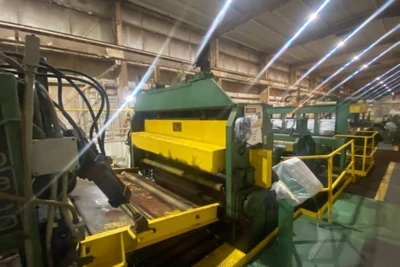

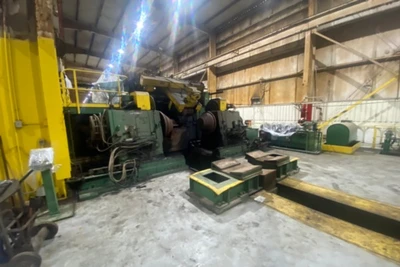

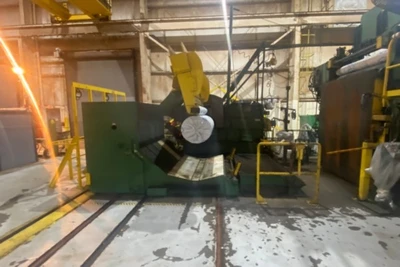

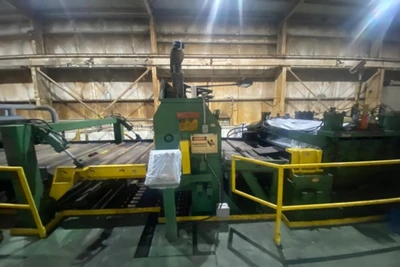

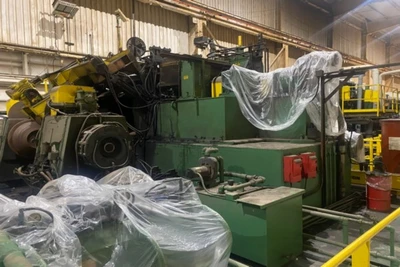

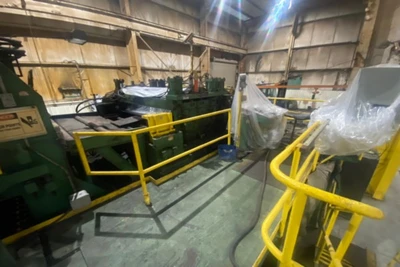

72" x 1/2" x 69,000# Pro-Eco Heavy Gauge Slitting Line Components

Specifications Note: These slitting line components are inline components from

a pickling line. Certain additional components will need to be added to

complete this line and modify the components to operate as stand alone

slitting line.

MANUFACTURER: PRO-ECO

YEAR - 1989

LINE DIRECTION - RIGHT to LEFT

MATERIALS - CARBON, STAINLESS & ALUMINUM ALLOYS

THICKNESS - .500" MAX., .060" MIN.

COIL WIDTH - 72" MAX., 18" MIN. (ENTRY & EXIT)

MAX. COIL WEIGHT - 69,000# ENTRY, 69,000# EXIT (24" DRUM) 50,000# EXIT (20"

DRUM)

MAX. COIL OD - 80" (ENTRY), 76" (EXIT)

COIL ID - 19" to 33" ENTRY (LIMITED BY COIL WIDTH), 20" or 24" EXIT

SLITTER ARBOR DIAMETER - 10.000"

SLITTER KNIFE DIAMETER - 16.000" MAX., 13.000" MIN.

NUMBER of SLITTER HEADS - TWO (2)

SLITTER HEAD EXCHANGE STYLE - CRANE LIFT-OFF

LINE SPEED - 150 FPM MAX. LOW, 300 FPM MAX. HIGH

UNCOILER DRIVE - HYDRAULIC FEED-UP DRIVES w/ WATER-COOLED BRAKES

FLATTENER DRIVE - 150 HP GEARED IN AT 300 FPM

SCRAP CHOPPER DRIVE - 100 HP GEARED IN AT 300 FPM

RECOILER DRIVE - 200 HP GEARED IN AT 150 or 300 FPM

SLITTING LINE COMPONENTS:

SIDE SHIFTING COIL TRANSFER CAR w/ THREE (3) STORAGE POSITIONS

SADDLE ADAPTERS TO HANDLE NARROW COILS

COIL STORAGE SADDLES w/ SINGLE STAGING POSITION

PIT TYPE COIL LOADING CAR

DUAL CONE UNCOILER w/ FEEDUP DRIVES & WATER-COOLED BRAKES

POWERED HOLD DOWN ROLL

PIVOTING AND TELESCOPING PEELER BLADE

FIVE (5) ROLL FLATTENER w/ ENTRY PINCH ROLLS & 150 HP, DC DRIVE

"ISOTOPE" STRIP THICKNESS GAUGE w/ CARRY-OVER TABLES (SOURCE NOTE INCLUDED)

ROLLER TYPE SIDE GUIDES #1

STRIP CARRY-OVER TABLE w/ CONVEYOR ROLLS

ENTRY CROP SHEAR w/ "AUTO GAP" CLEARANCE CONTROL

STRIP CARRY-OVER TABLE w/ PIVOTING SCRAP DIVERTER

CROPPED SCRAP RUNOUT CONVEYOR #1

SLITTER PINCH ROLLS

ROLLER TYPE SIDE GUIDES #2

IN-LINE SLITTER BASE w/ HYDRAULIC HEAD LOCKING CLAMPS

TWO (2) CRANE LIFT-OFF SLITTER HEADS w/ 10.000" DIAMETER ARBORS

TWO (2) OFF-LINE SLITTER HEAD STORAGE STANDS

ONE (1) LOT OF SLITTER TOOLING (KNIVES, SPACERS & RUBBERS) w/ CABINETS

"BUTECH" MODEL SC501 DUAL ARBOR ROTARY SCRAP CHOPPERS & 100 HP, DC DRIVE

HEAVY DUTY HINGED STEEL BELT SCRAP CONVEYOR

TELESCOPING SCRAP CHOPPER CARRY-OVER TABLE

PIVOTING PIT THREADING TABLE

PAD TENSION STAND W/ENTRY STRIP SEPARATOR SPINDLE

ONE (1) LOT OD UNDERARM SEPARATOR TOOLING W/CABINETS

EXIT CROP SHEAR PINCH ROLLS

EXIT CROP SHEAR w/ "AUTO GAP" CLEARANCE CONTROL

STRIP CARRY-OVER TABLE w/ PIVOTING SCRAP DIVERTER

CROPPED SCRAP RUNOUT CONVEYOR #2

EXIT PINCH / PASS LINE ROLL

PIVOTING RECOILER THREADING TABLE

CANTILEVERED MANDREL RECOILER w/ 20" & 24" INTERCHANGEABLE QUILL TYPE DRUMS,

200 HP, DC DRIVE, TWO (2) SPEED GEARBOX, COIL PUSHER & PIVOTING OVERARM

SEPARATOR

ONE (1) LOT OF OVERARM SEPARATOR TOOLING (SPACERS & DISCS) w/ CABINETS

FLOOR LEVEL COIL UNLOADING CAR w/ MANUAL STANCHIONS

FOUR (4) ARM EXIT STORAGE TURNSTILE

OPERATOR CONTROL STATIONS

AC CONTROLS & CABINETS (2007 ALLEN-BRADLEY CONTROL LOGIX PLC UPGRADE)

VARIABLE SPEED DRIVE CONTROLS & CABINETS (2007 ROCKWELL FLEXPAC 3000 UPGRADE)

CLOSED LOOP HYDRAULIC SYSTEM (2 LINE UNITS & 2 SHEAR UNITS)

CLOSED LOOP WATER COOLING SYSTEM (2 LINE UNITS)

MISCELLANEOUS SPARE PARTS

MISCELLANEOUS DRAWINGS & MANUALS
